Cruise Control (TMC Made), Electronically Controlled Transmission and A/T Indicator (TMC Made), Engine Control (TMC Made)

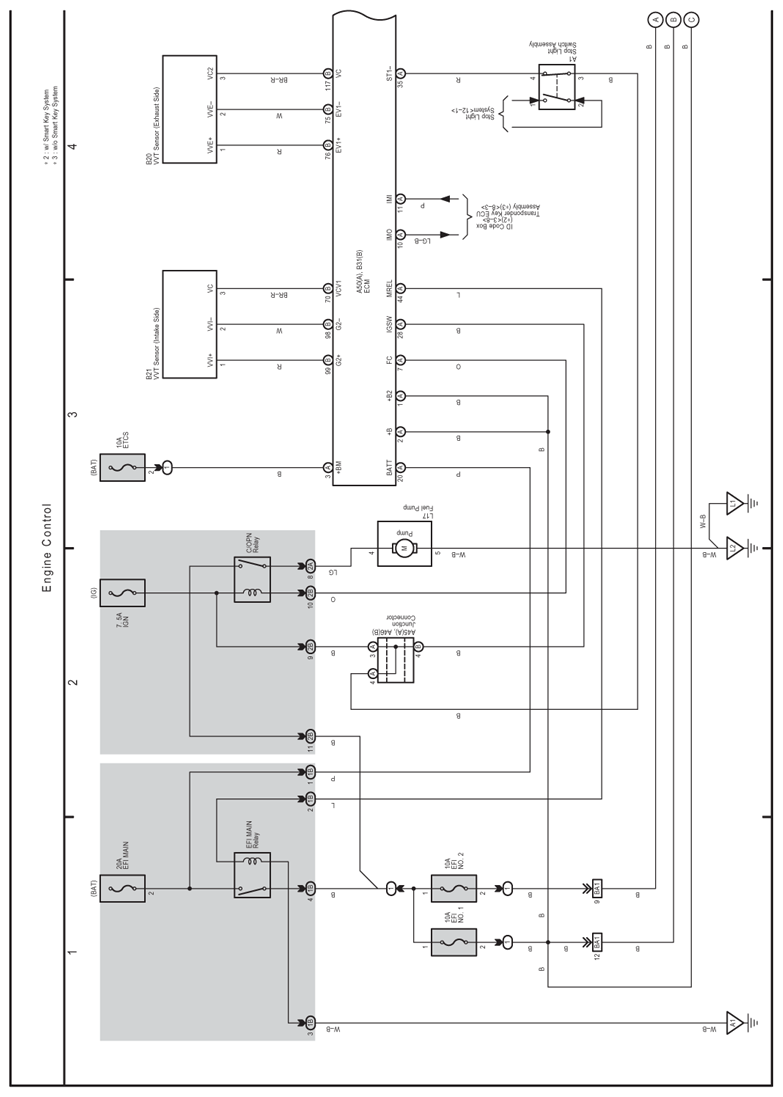

Fig 1: Engine Control - Electrical Wiring Diagram - TMC Made (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

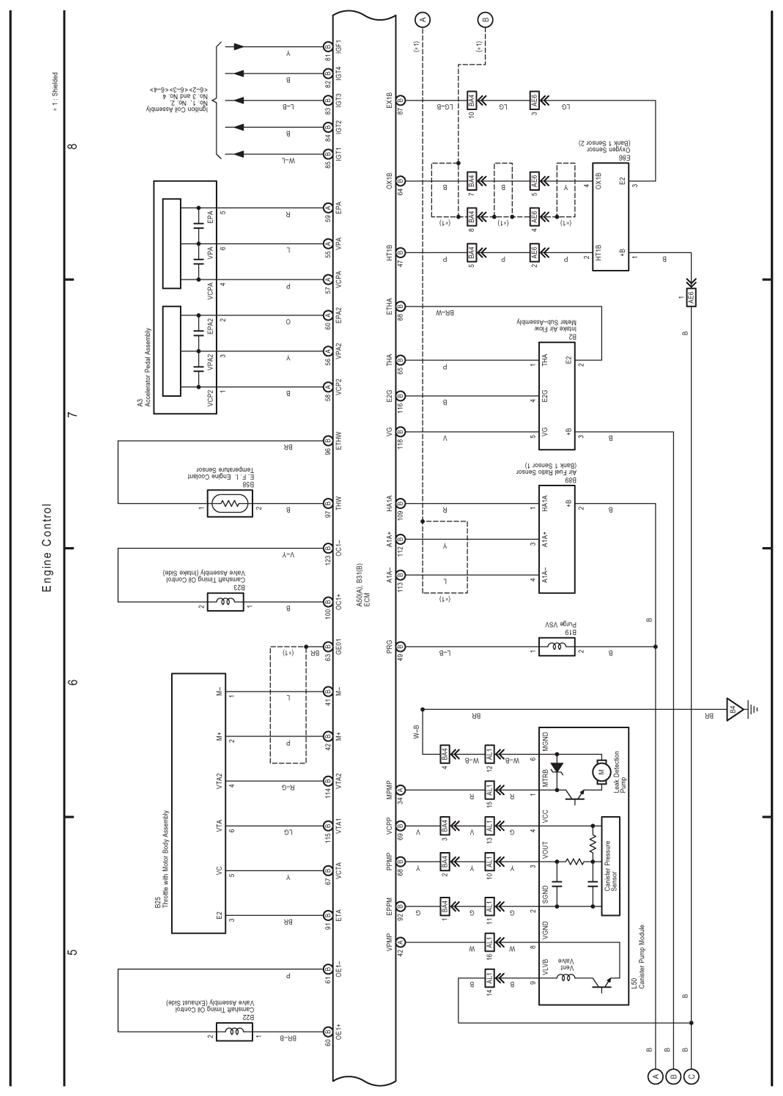

Fig 2: Engine Control - Electrical Wiring Diagram - TMC Made (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

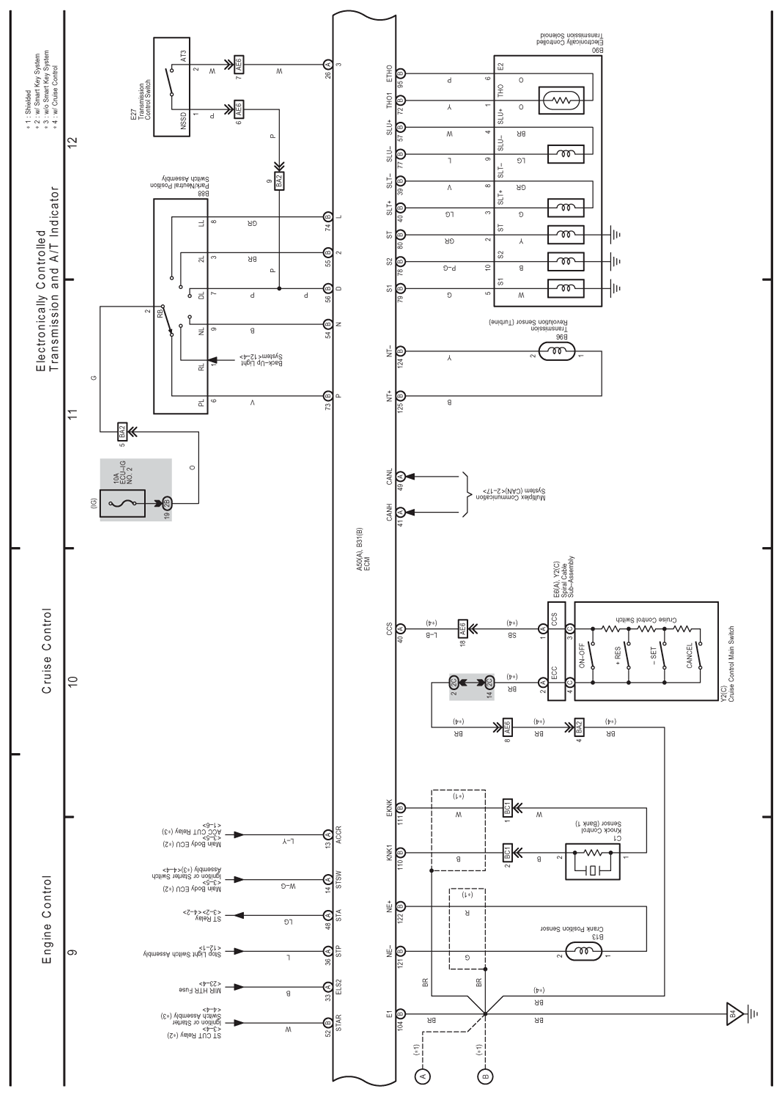

Fig 3: Engine Control - Electrical Wiring Diagram - TMC Made (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

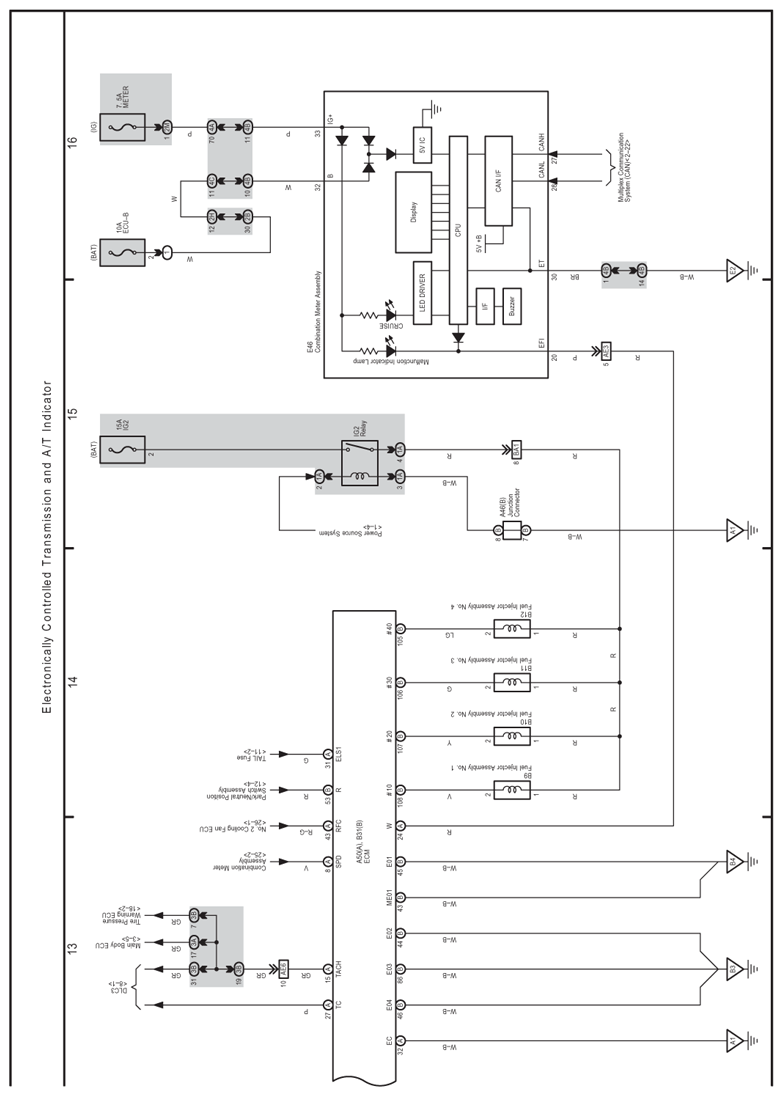

Fig 4: Electronically Controlled Transmission And A/T Indicator - Electrical Wiring Diagram - TMC Made

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
