Cooling Fan (2AZ-FE) (Except TMC Made)

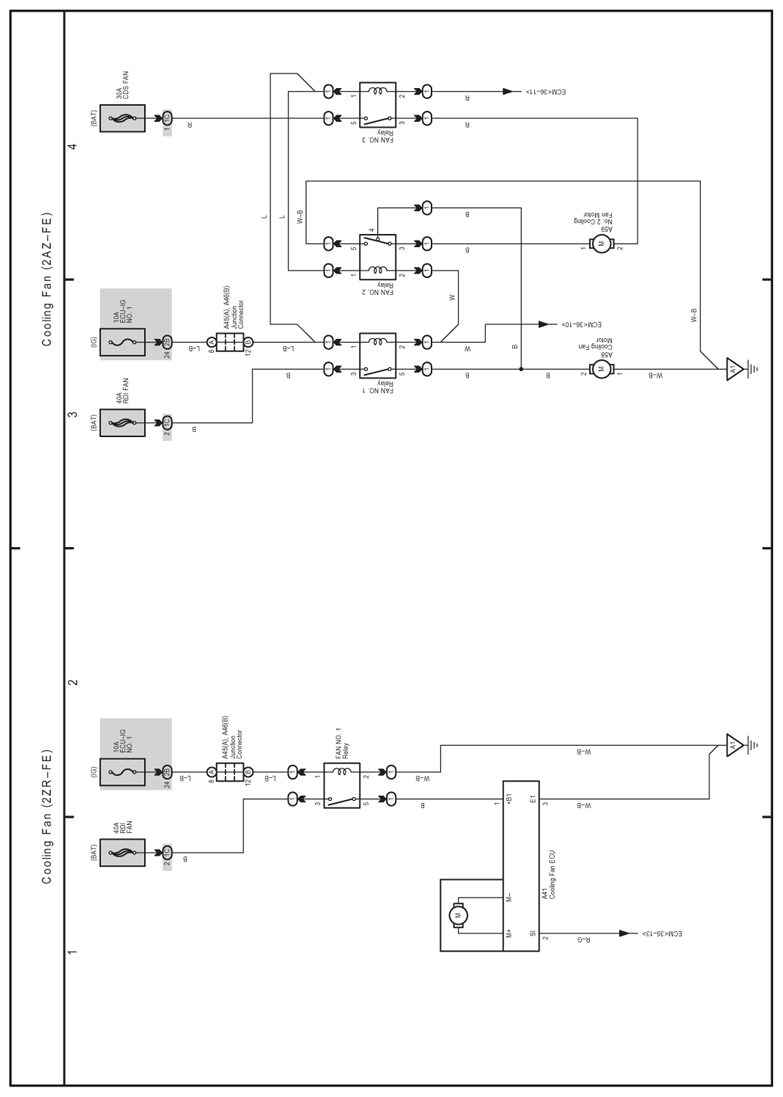

Fig 1: Cooling Fan (2AZ-FE) Electrical Wiring Diagram - Except TMC Made

G07618257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
