Combination Meter (TMC Made)

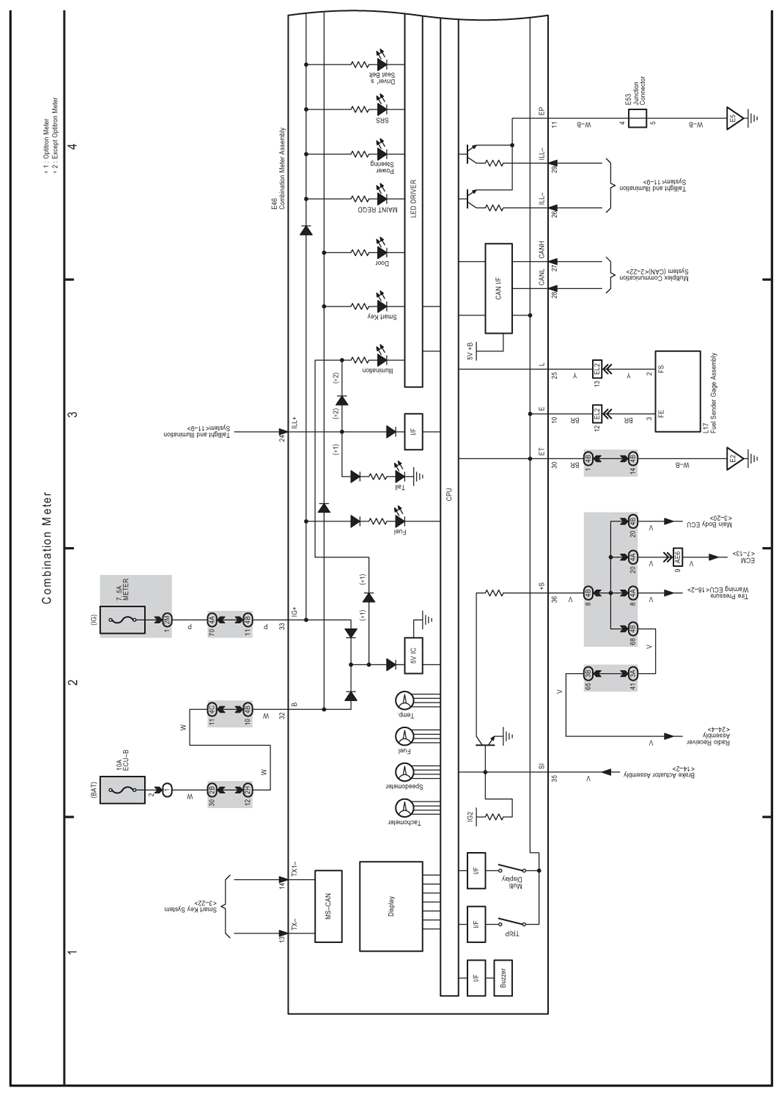

Fig 1: Combination Meter - Electrical Wiring Diagram - TMC Made (1 Of 2)
G07618196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

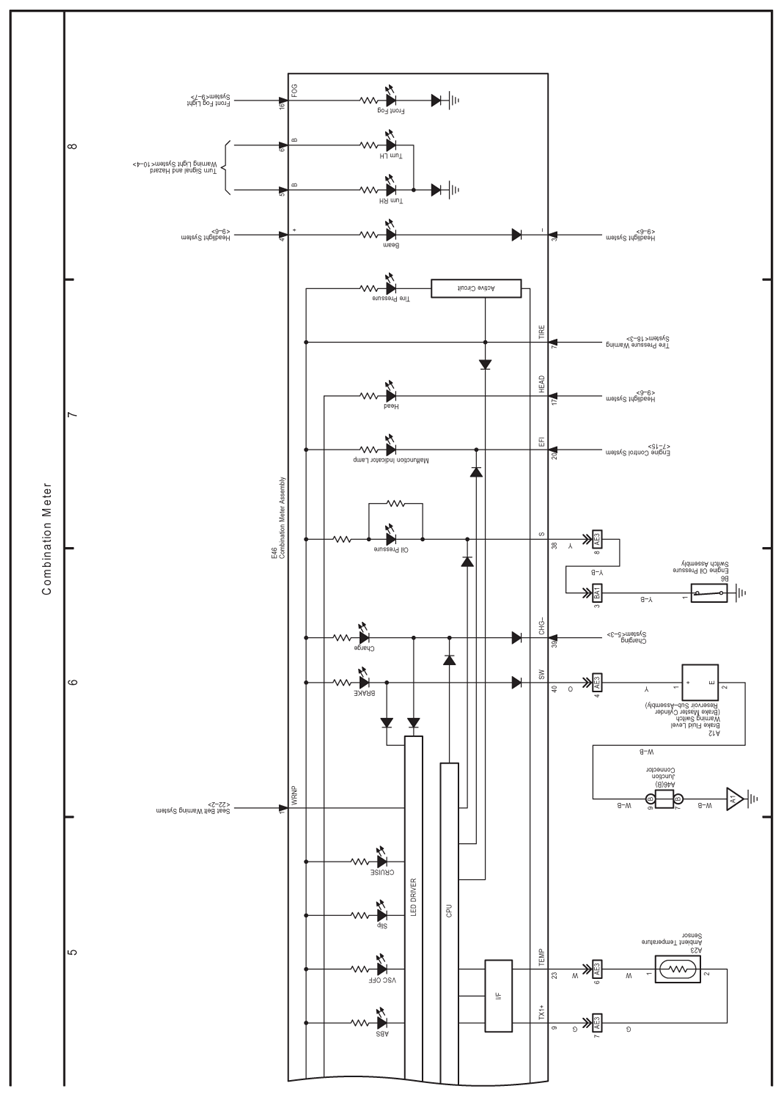

Fig 2: Combination Meter - Electrical Wiring Diagram - TMC Made (2 Of 2)
G07618197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
