Combination Meter (Except TMC Made)

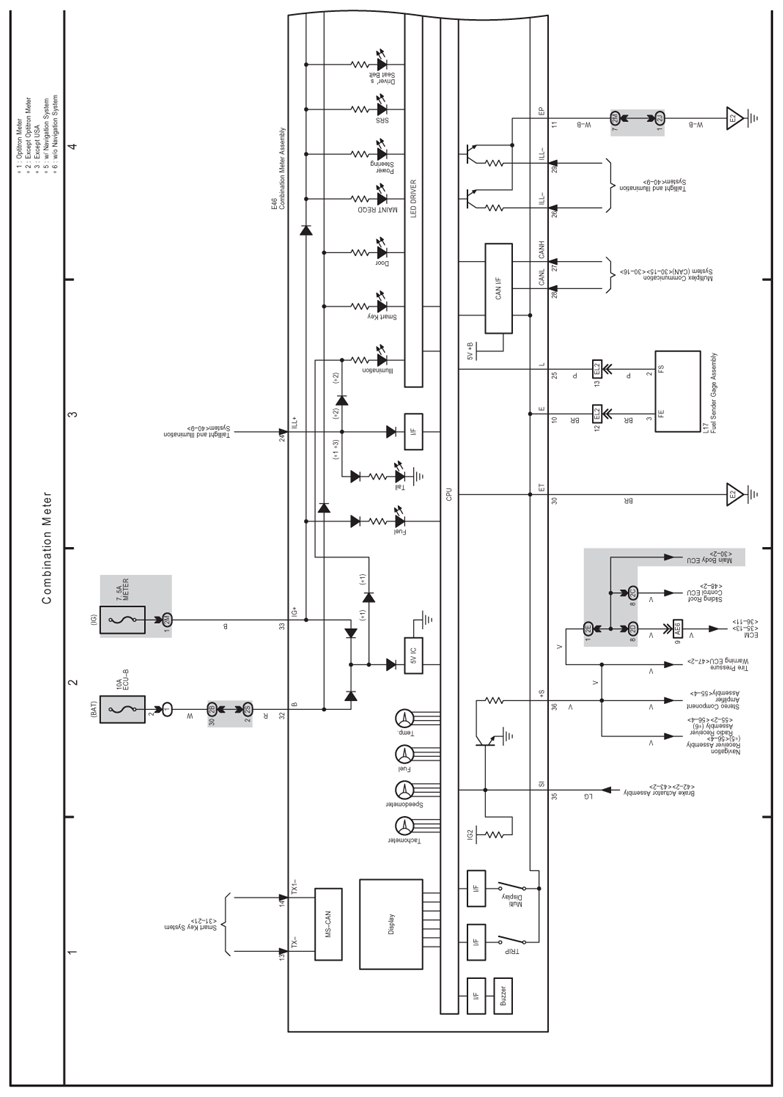

Fig 1: Combination Meter - Electrical Wiring Diagram - Except TMC Made (1 Of 2)
G07618255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

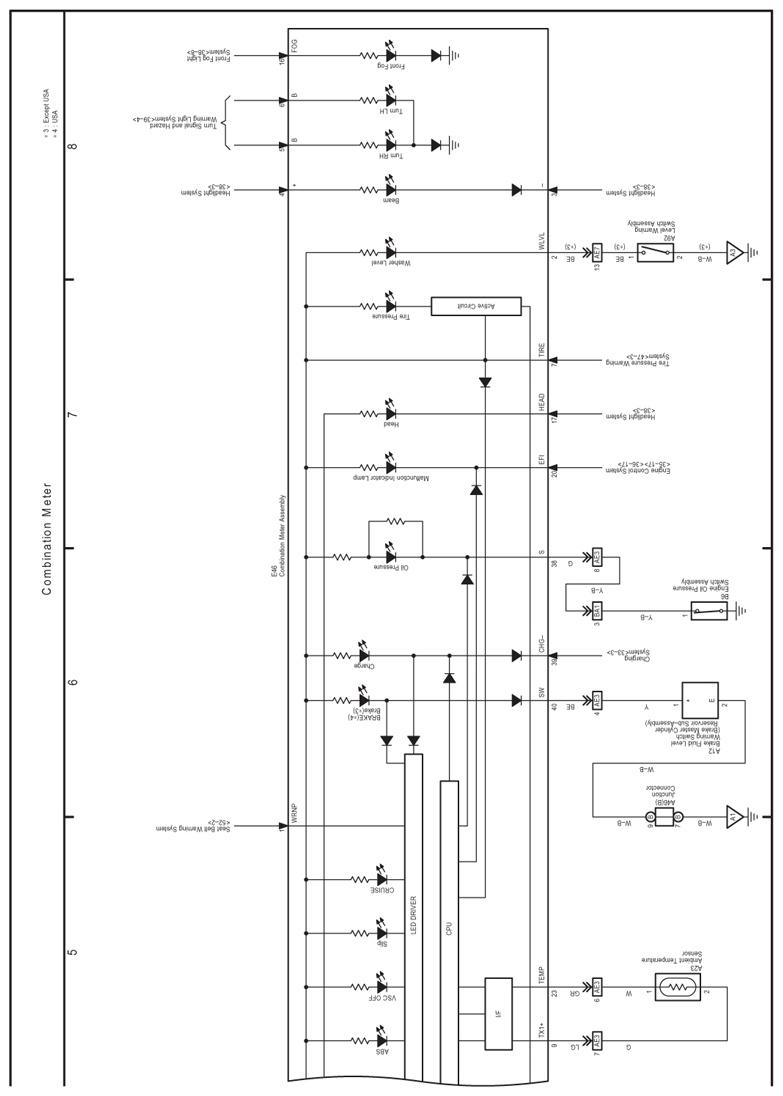

Fig 2: Combination Meter - Electrical Wiring Diagram - Except TMC Made (2 Of 2)
G07618256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
