Clock (TMC Made), Illumination (TMC Made), Light Reminder (TMC Made), Taillight (TMC Made)

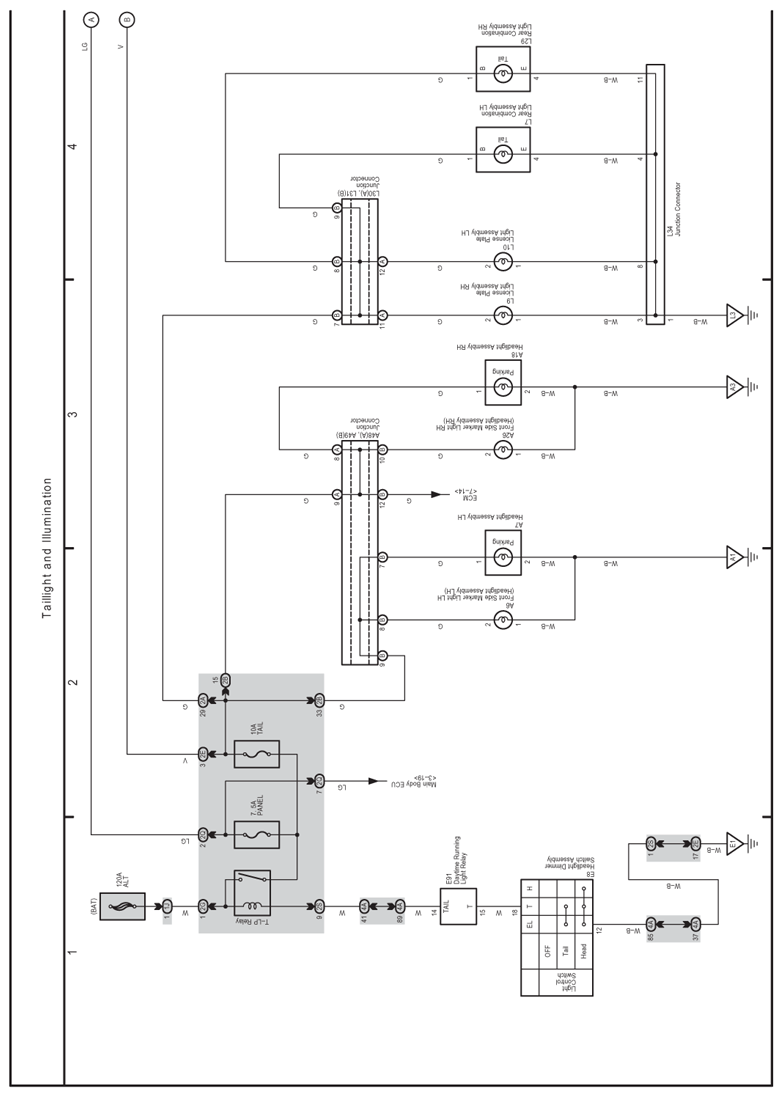

Fig 1: Taillight And Illumination Electrical Wiring Diagram - TMC Made (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

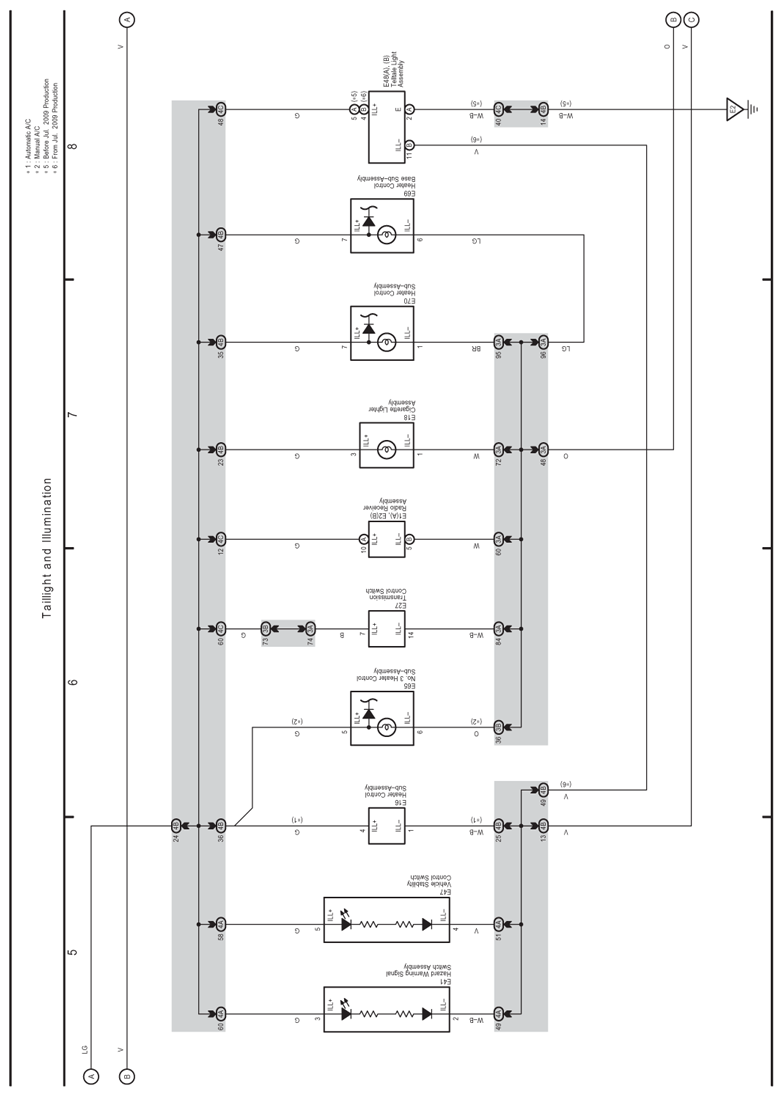

Fig 2: Taillight And Illumination Electrical Wiring Diagram - TMC Made (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

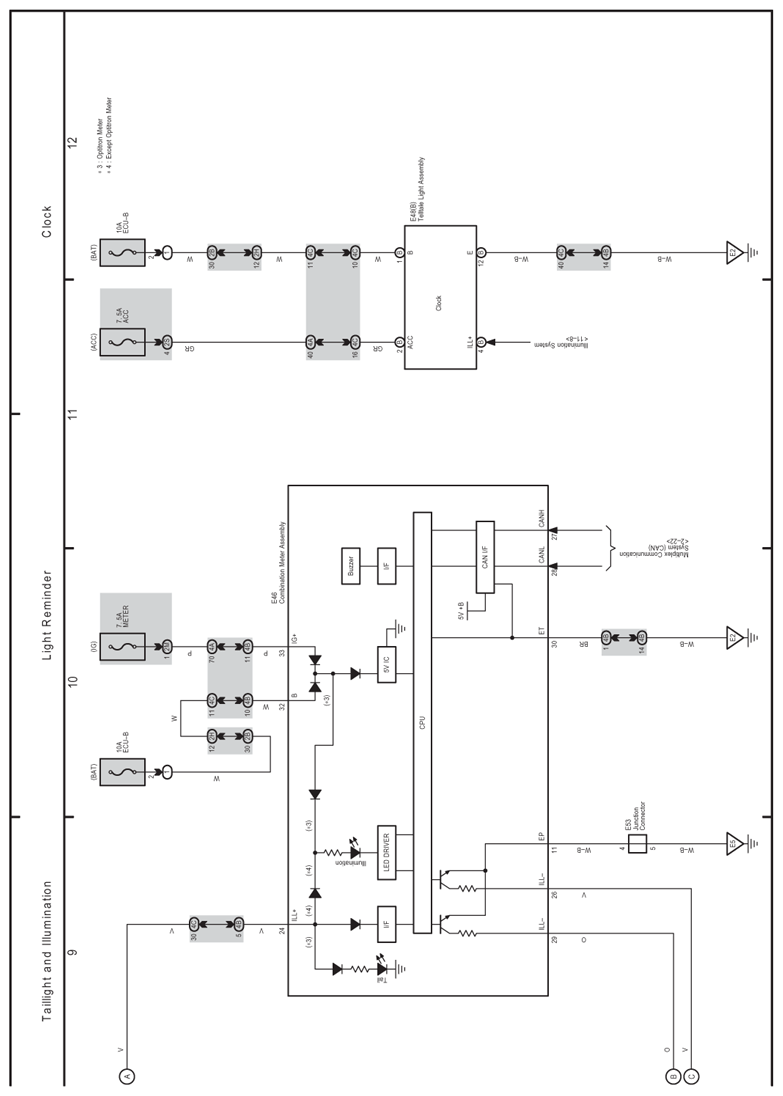

Fig 3: Taillight, Illumination, Clock And Light Reminder Electrical Wiring Diagram - TMC Made (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
