Clock (Except TMC Made), Illumination (Except TMC Made), Light Reminder (Except TMC Made), Taillight (Except TMC Made)

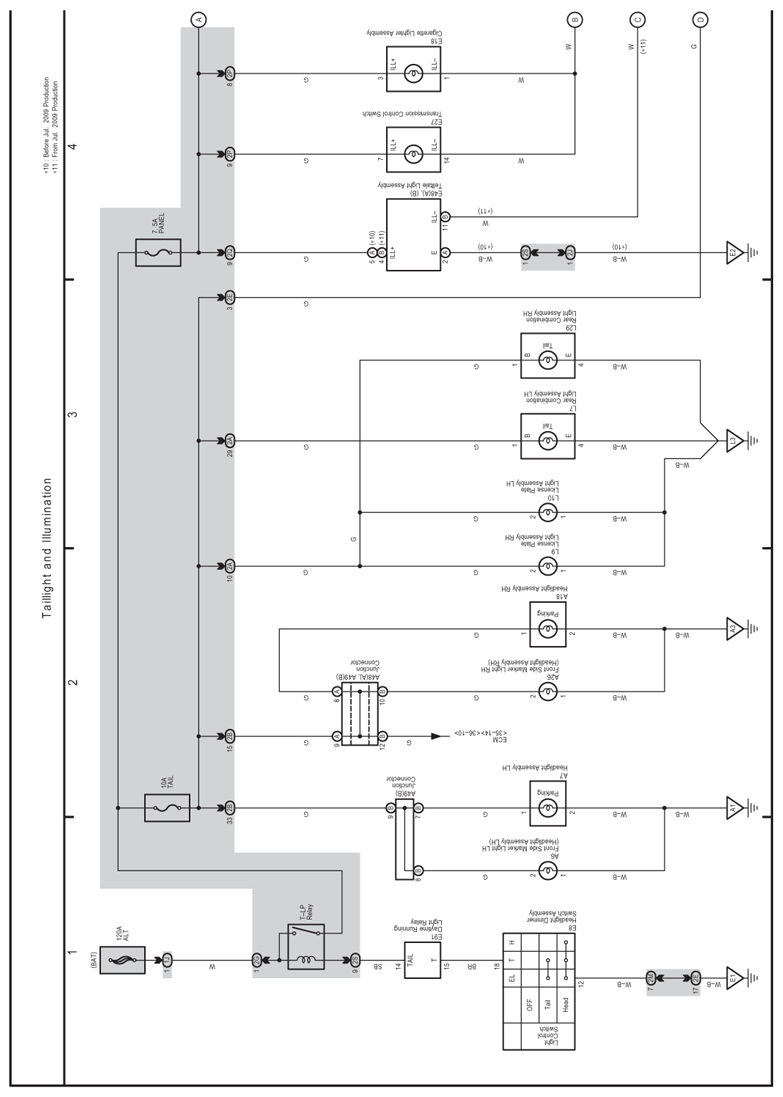

Fig 1: Taillight And Illumination Electrical Wiring Diagram - Except TMC Made (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

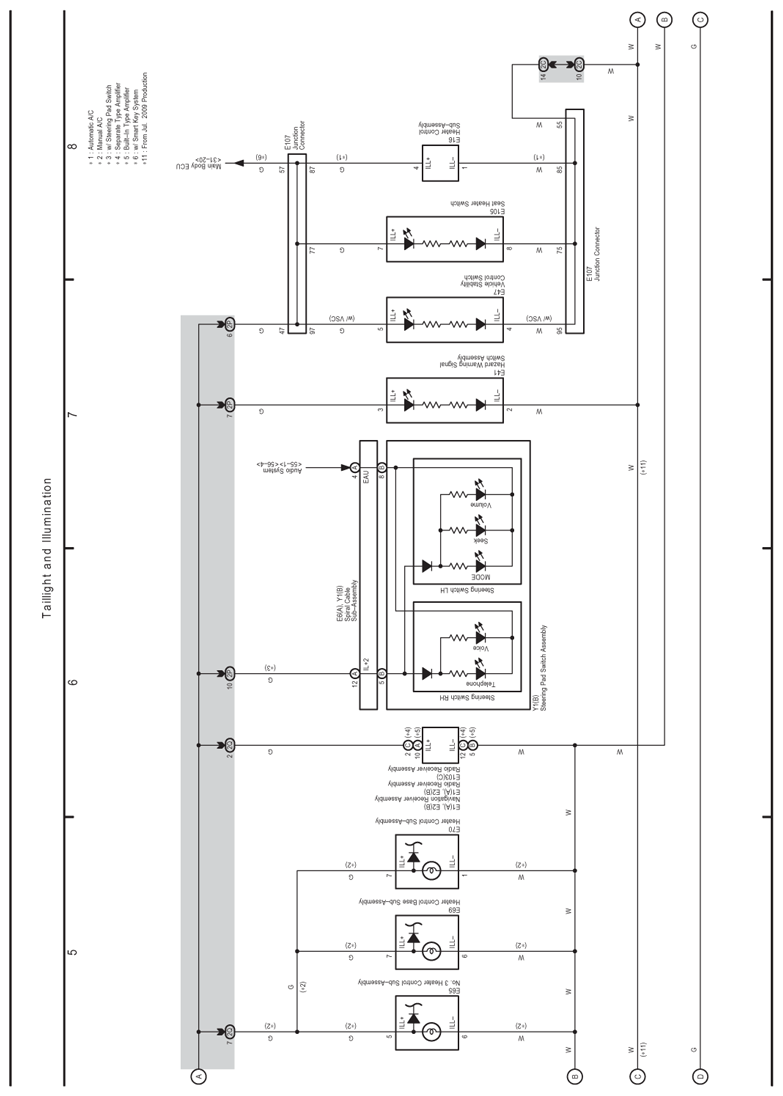

Fig 2: Taillight And Illumination Electrical Wiring Diagram - Except TMC Made (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

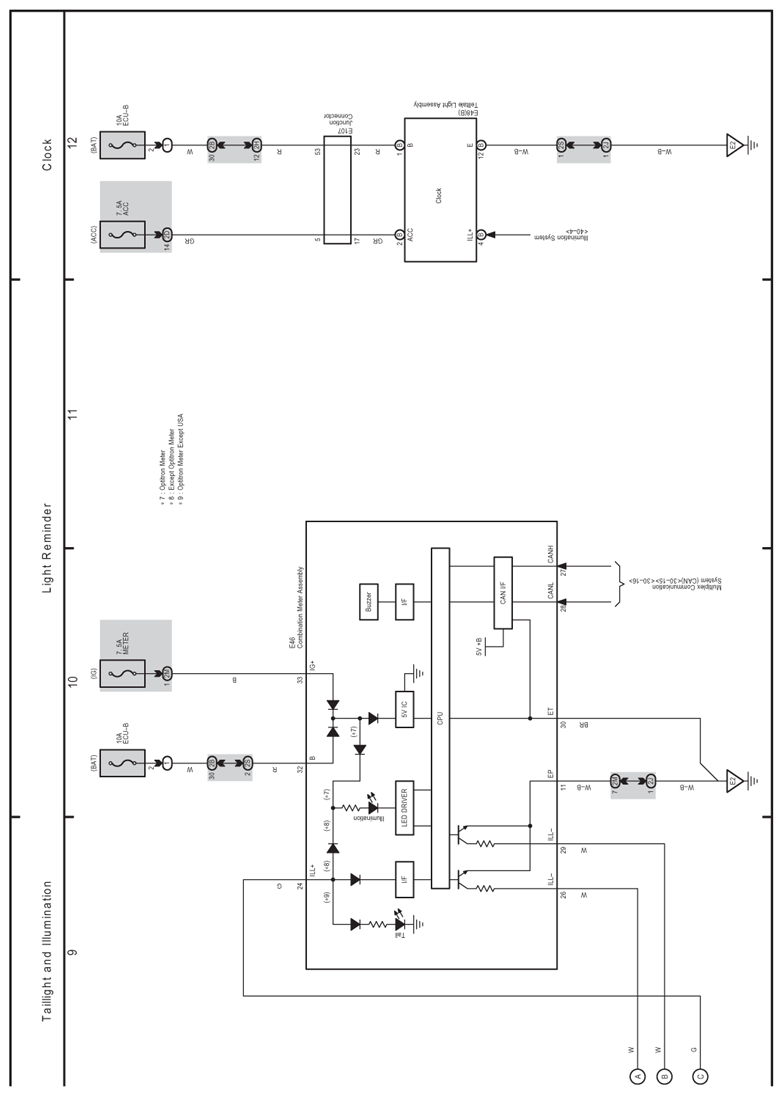

Fig 3: Taillight And Illumination, Light Reminder And Clock - Electrical Wiring Diagram - Except TMC Made (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
