Cigarette Lighter (TMC Made), Seat Belt Warning (TMC Made)

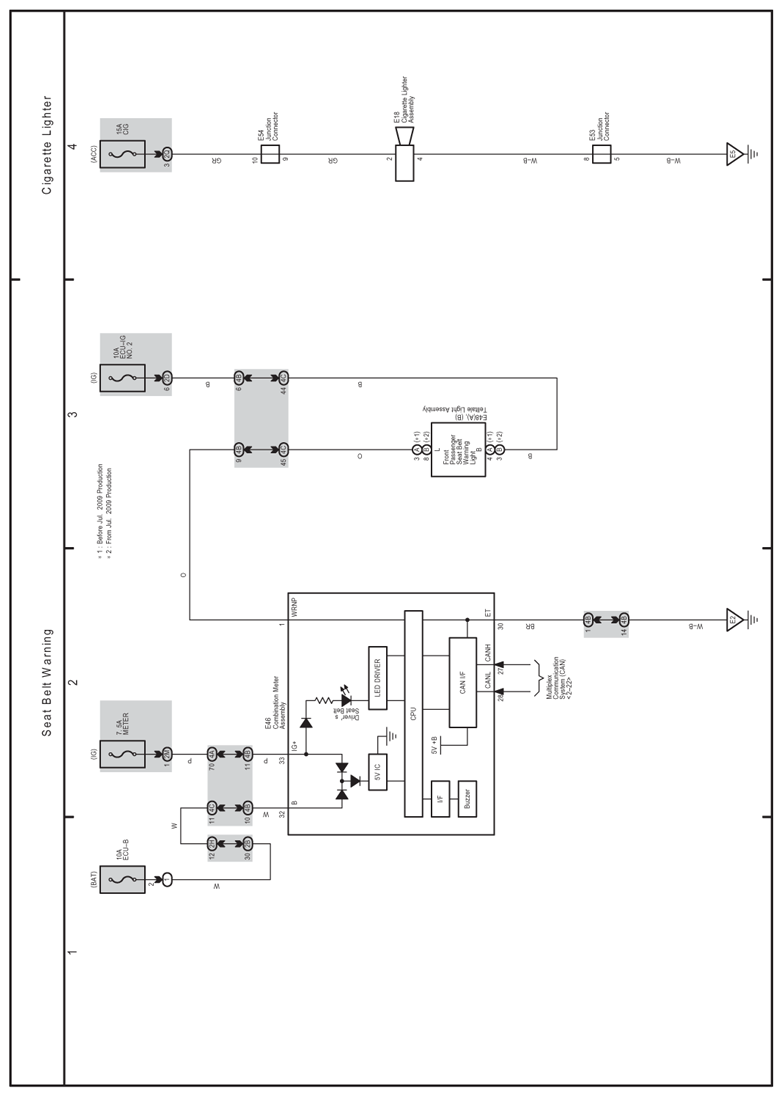

Fig 1: Cigarette Lighter And Seat Belt Warning - Electrical Wiring Diagram - TMC Made

G07618193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
