OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Charging (TMC Made)
Charging (TMC Made)

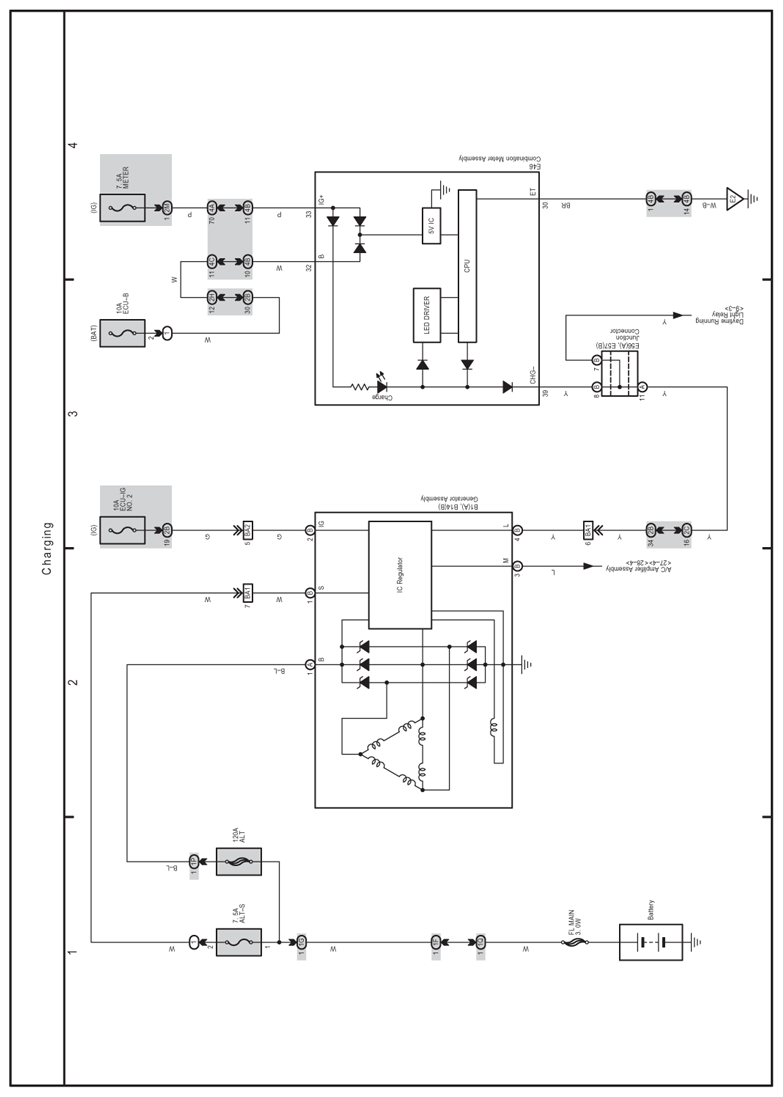

Fig 1: Charging - Electrical Wiring Diagram - TMC Made
