Charging (Except TMC Made)

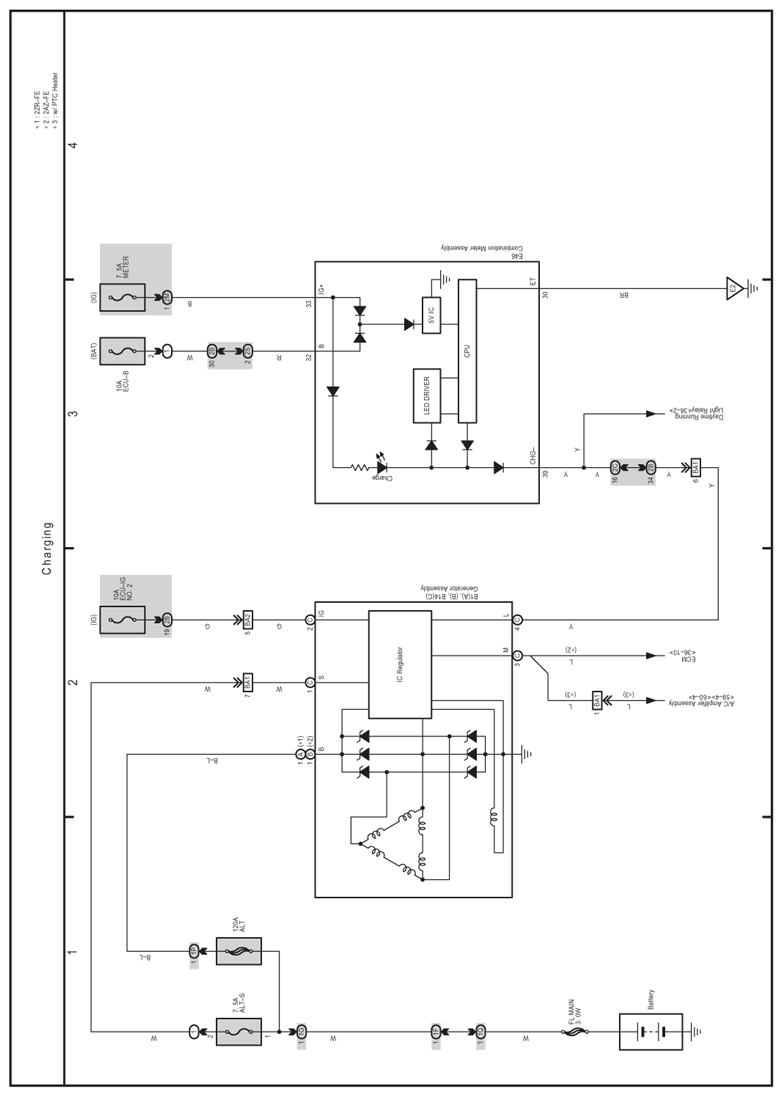

Fig 1: Charging - Electrical Wiring Diagram - Except TMC Made

G07618216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
