OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Back-Up Light (TMC Made), Stop Light (TMC Made)
Back-Up Light (TMC Made), Stop Light (TMC Made)

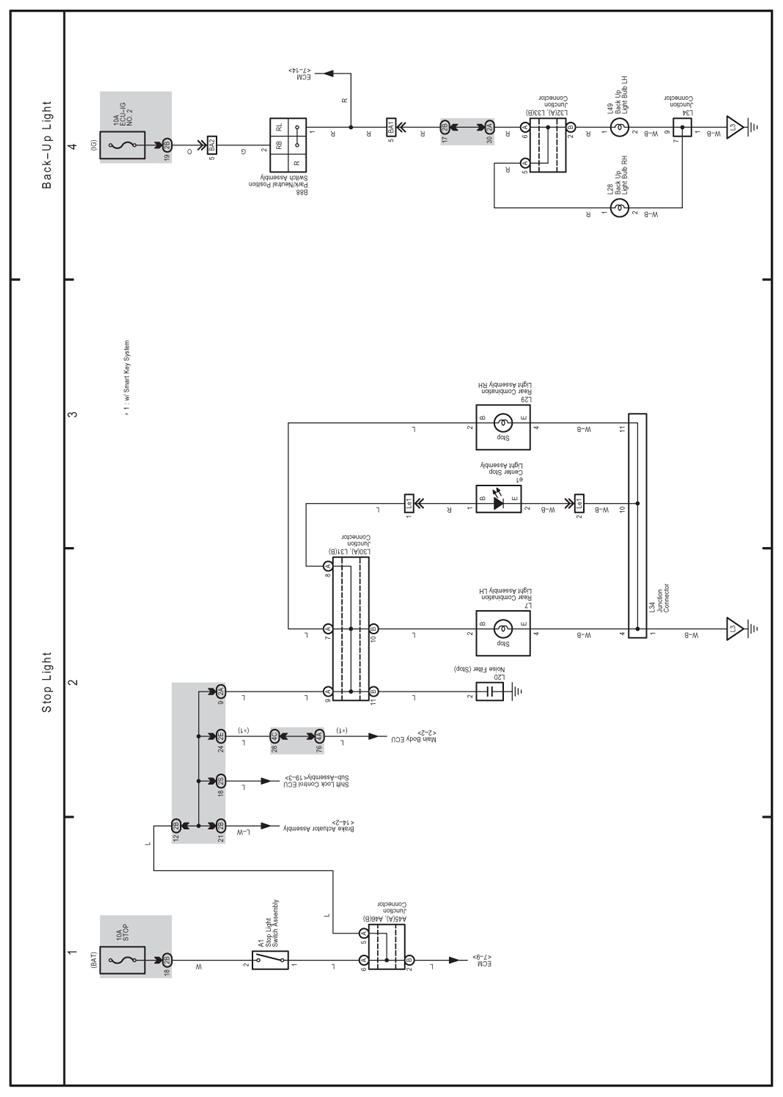

Fig 1: Back-up Light And Stop Light - Electrical Wiring Diagram - TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
