Automatic Glare-Resistant EC Mirror with Compass (Except TMC Made), Sliding Roof (Except TMC Made)

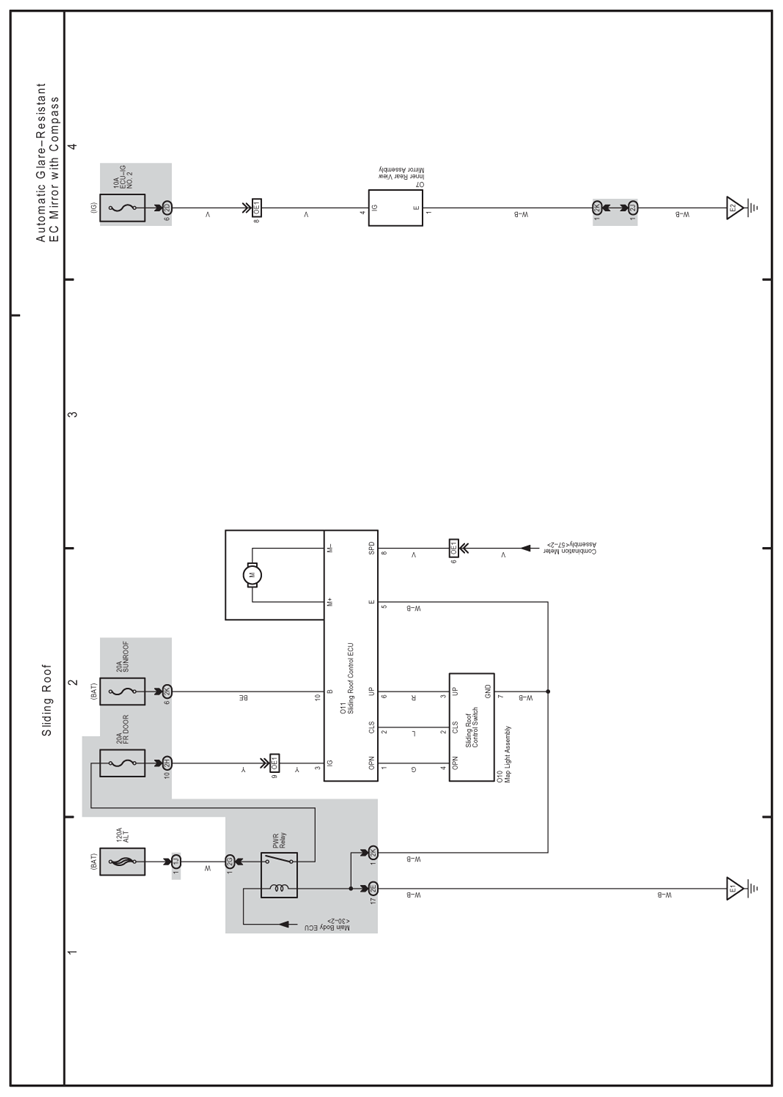

Fig 1: Automatic Glare-Resistant EC Mirror With Compass And Sliding Roof - Electrical Wiring Diagram - Except TMC Made
G07618244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
