Automatic Air Conditioning (Except TMC Made)

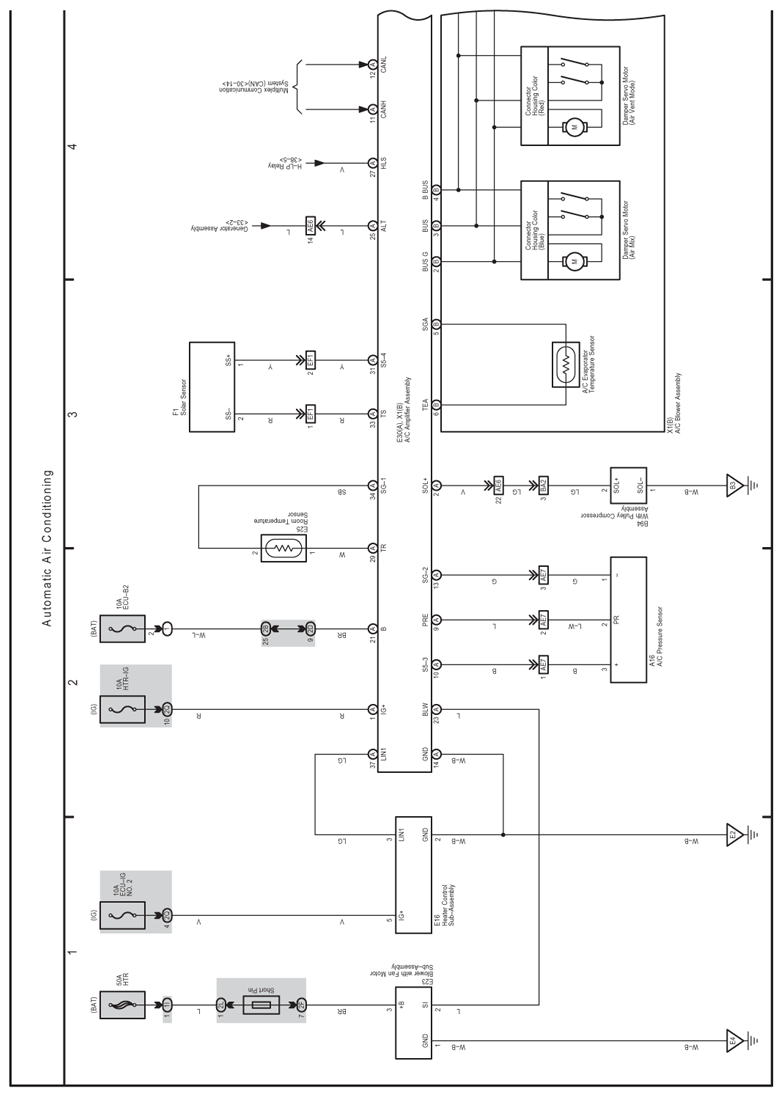

Fig 1: Automatic Air Conditioning - Electrical Wiring Diagram - Except TMC Made (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

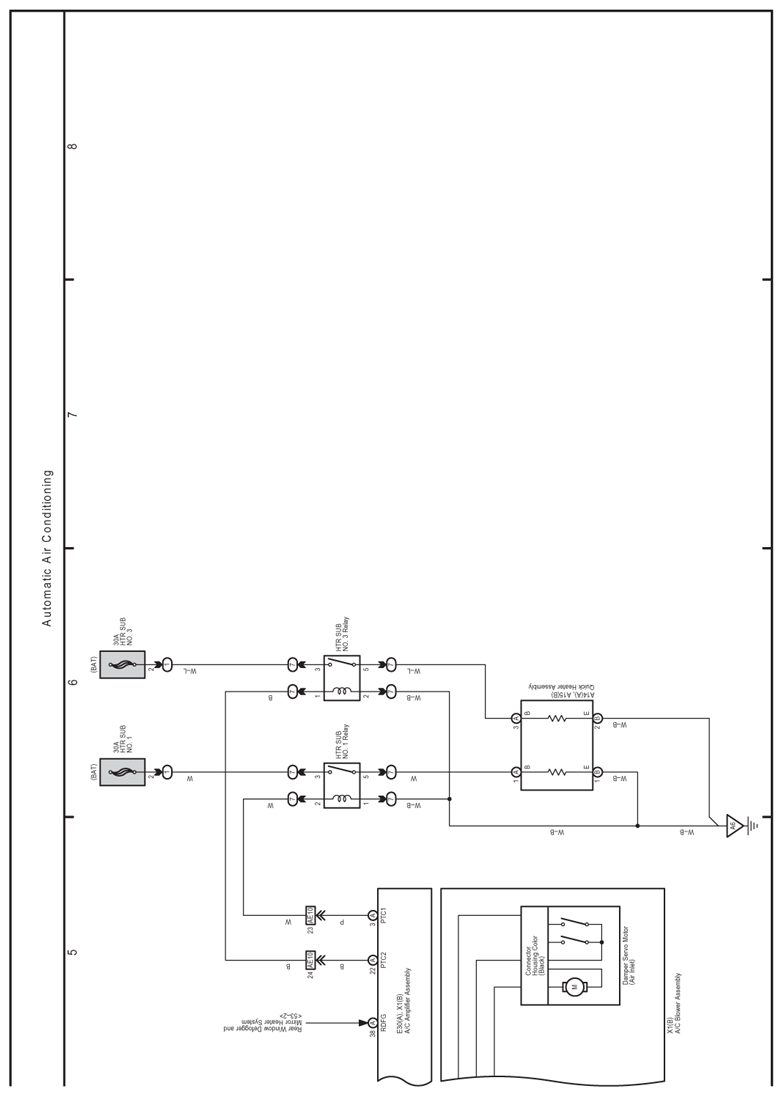

Fig 2: Automatic Air Conditioning - Electrical Wiring Diagram - Except TMC Made (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
