Audio System (TMC Made)

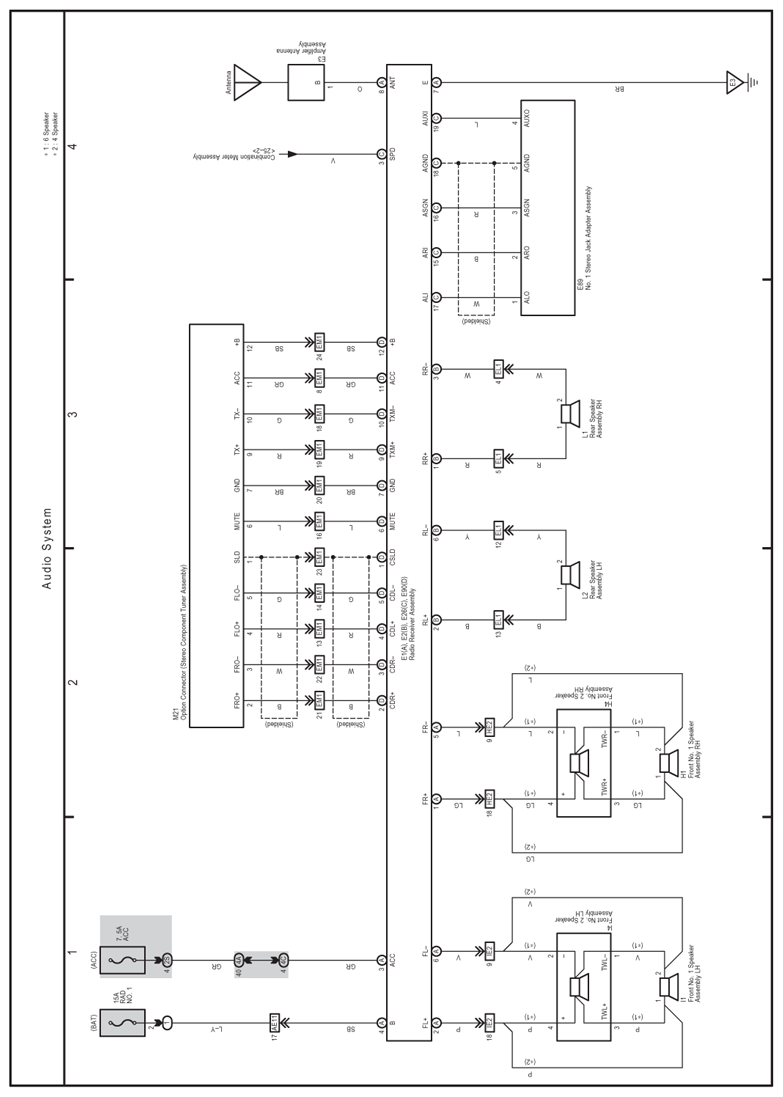

Fig 1: Audio System - Electrical Wiring Diagram - TMC Made

G07618195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
