Toyota
>>
2010
>>
Corolla XLE
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
ABS (w/o VSC) (Except TMC Made)
ABS (w/o VSC) (Except TMC Made)

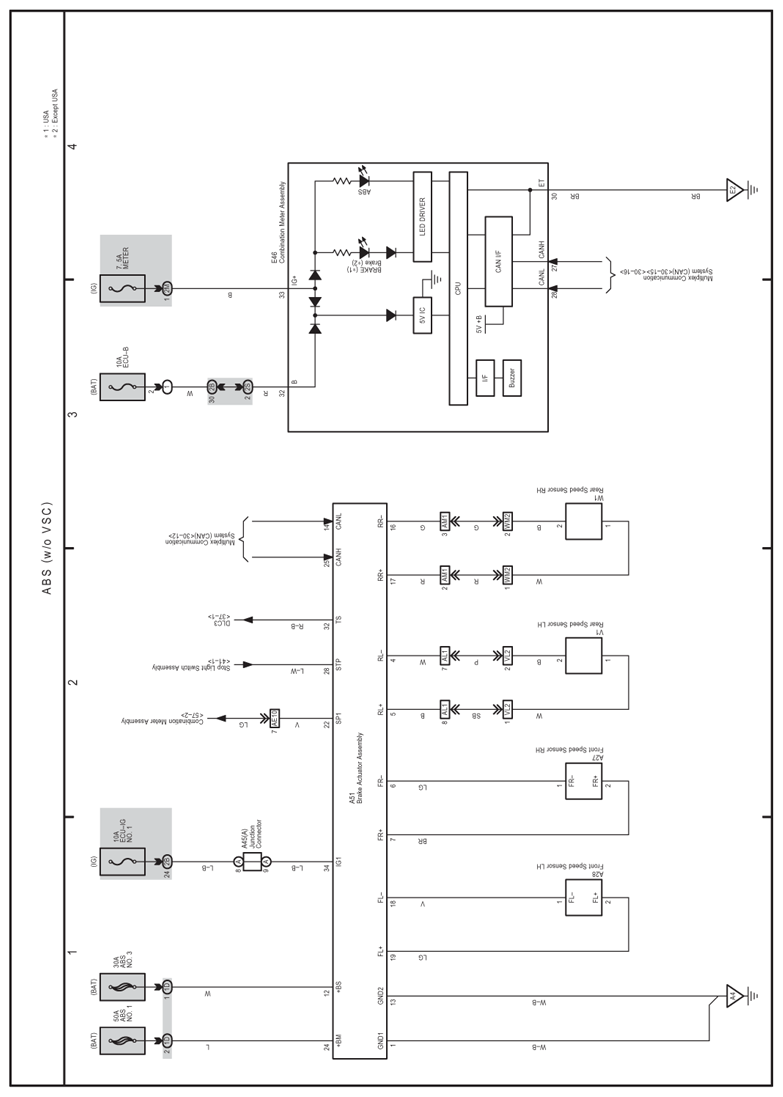

Fig 1: ABS (W/O VSC) - Electrical Wiring Diagram - Except TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
