ABS (w/VSC) (Except TMC Made), TRAC (Except TMC Made), VSC (Except TMC Made)

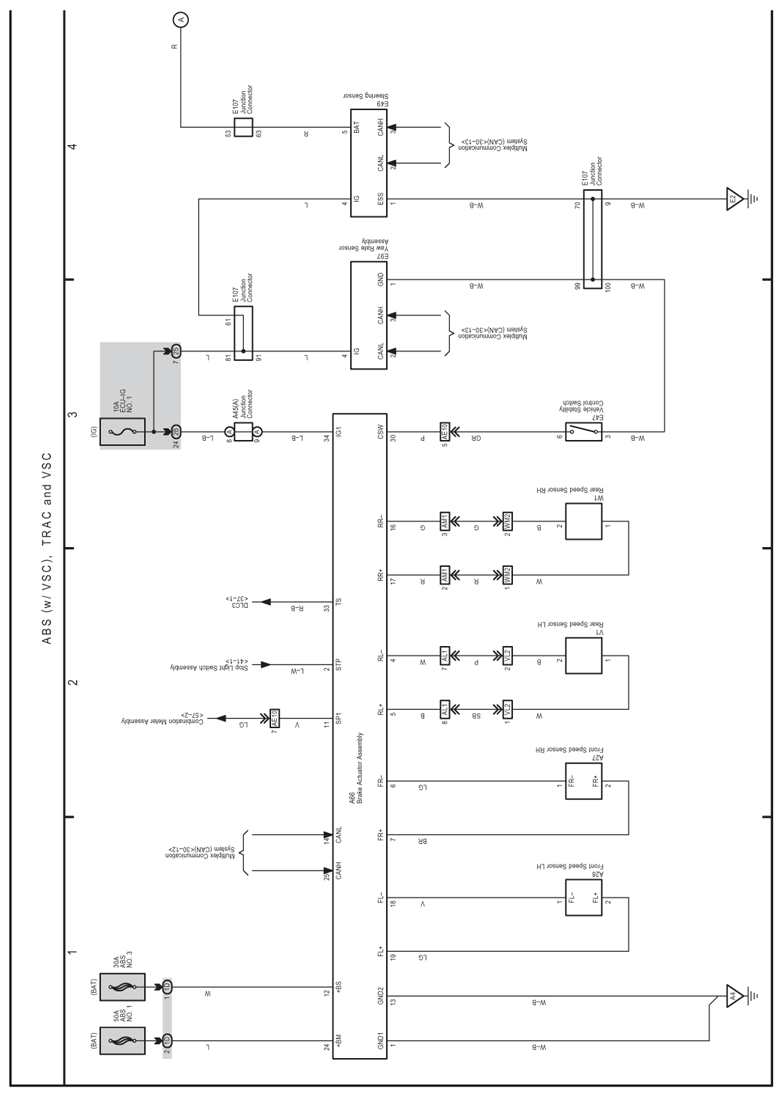

Fig 1: ABS (W/ VSC), TRAC And VSC - Electrical Wiring Diagram - Except TMC Made (1 Of 2)
G07618236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

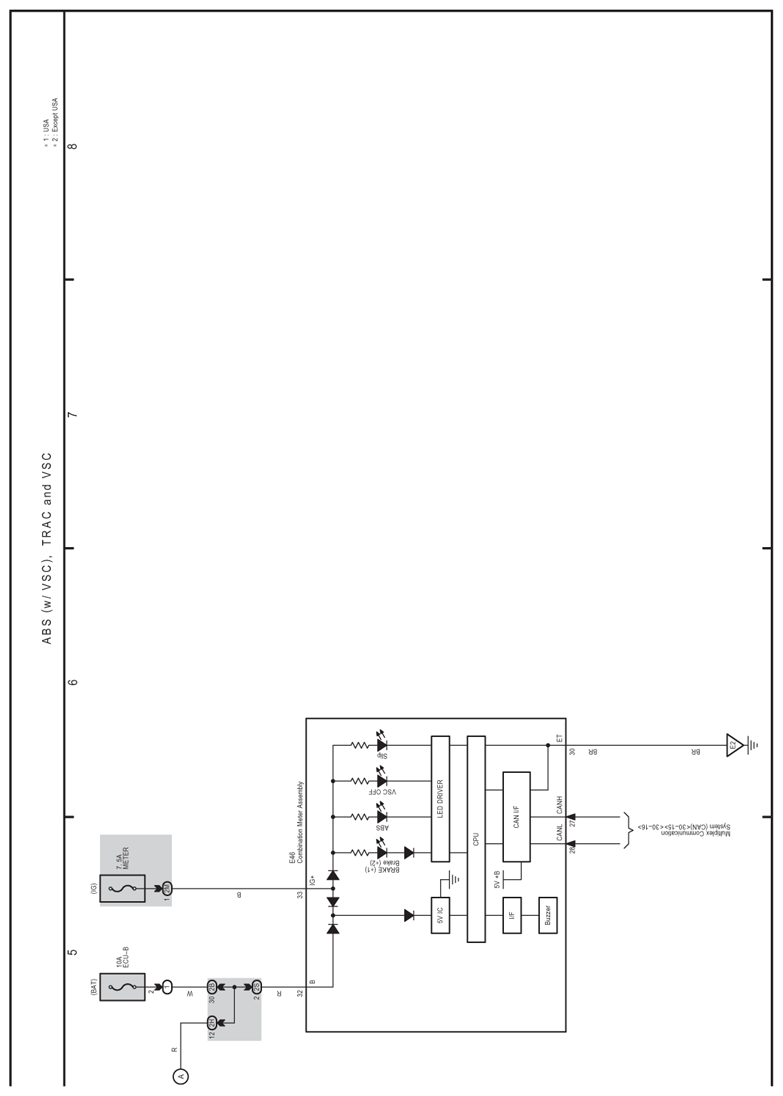

Fig 2: ABS (W/ VSC), TRAC And VSC - Electrical Wiring Diagram - Except TMC Made (2 Of 2)
G07618237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
