Overall Electrical Wiring Diagram
>>
ABS (TMC Made), TRAC (TMC Made), VSC (TMC Made)
ABS (TMC Made), TRAC (TMC Made), VSC (TMC Made)

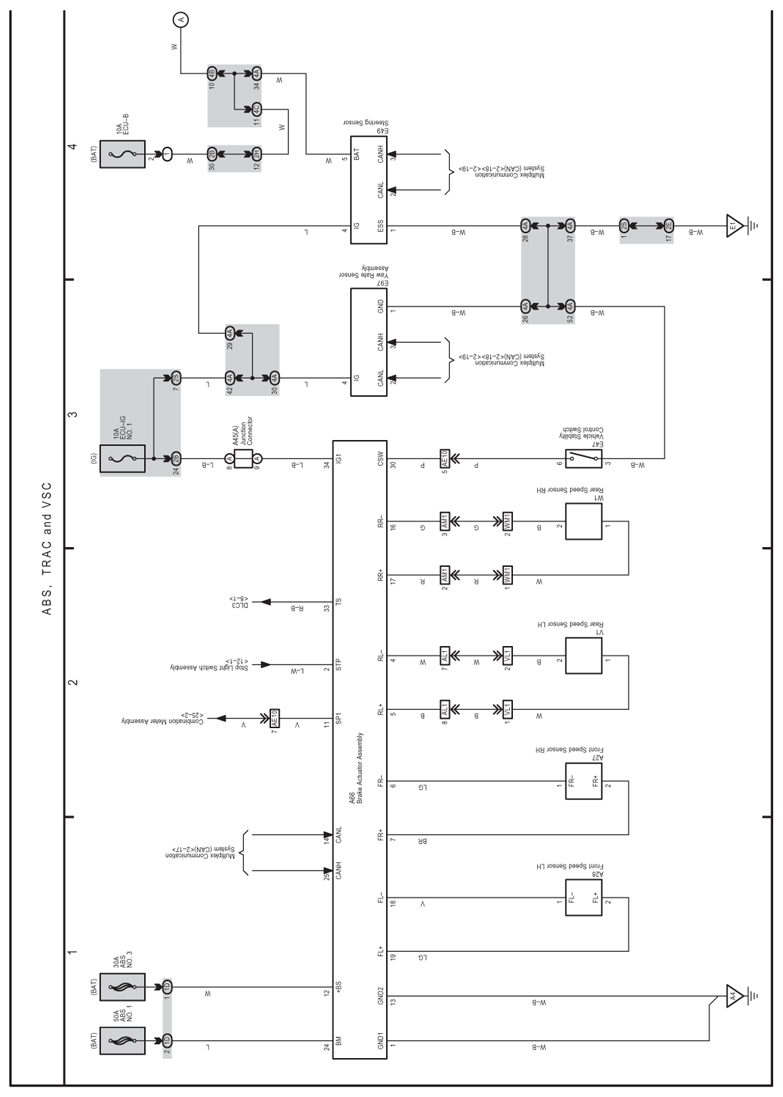

Fig 1: ABS, TRAC And VSC - Electrical Wiring Diagram - TMC Made (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

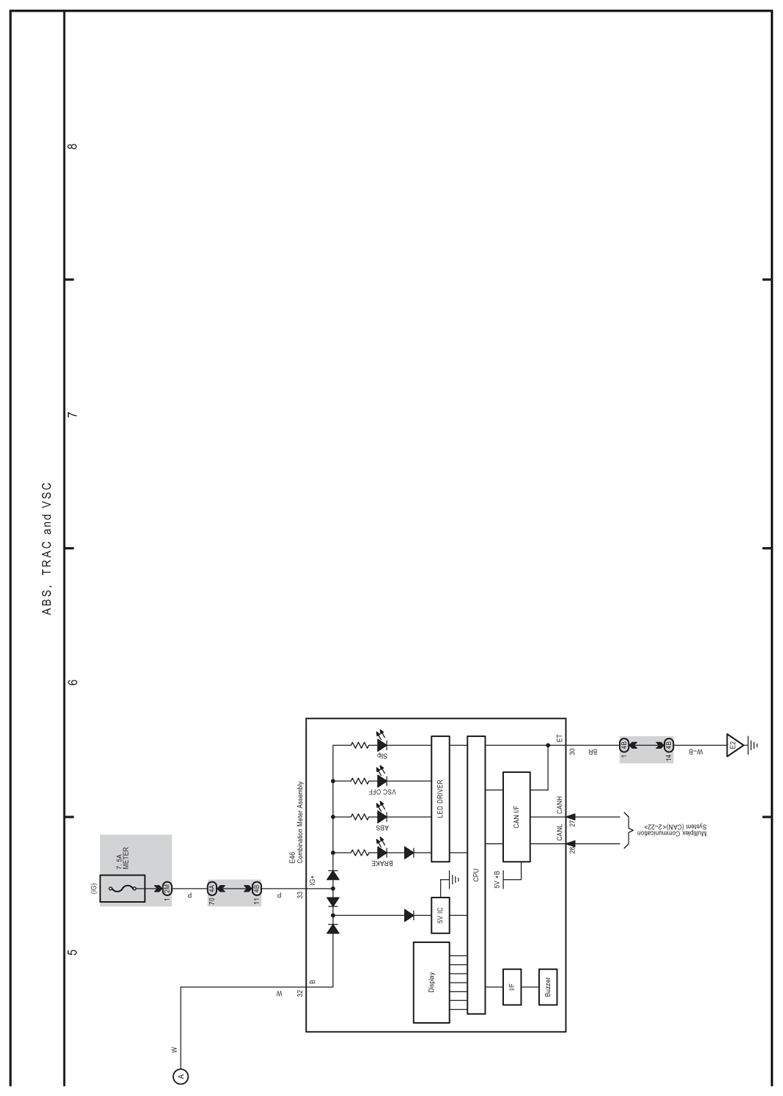

Fig 2: ABS, TRAC And VSC - Electrical Wiring Diagram - TMC Made (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
