19 Shift Lock (TMC Made)

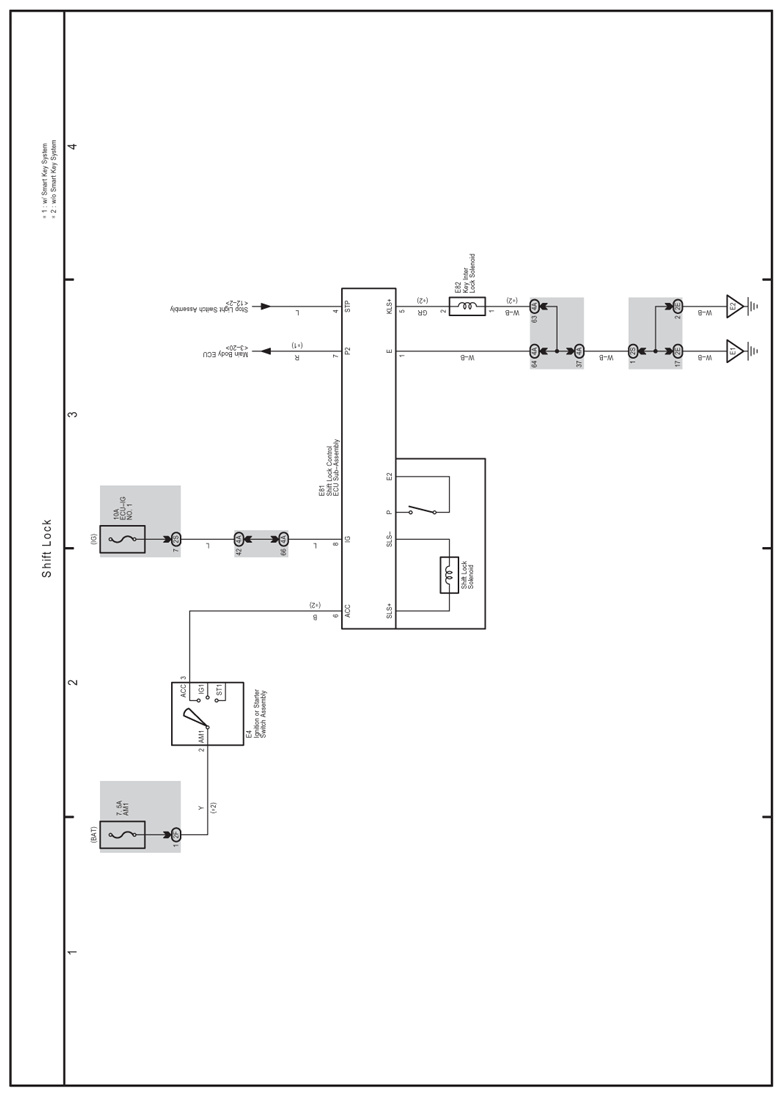

Fig 1: Shift Lock - Electrical Wiring Diagram - TMC Made

G07618190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
