Rear Stabilizer Bar: Components: Illustration

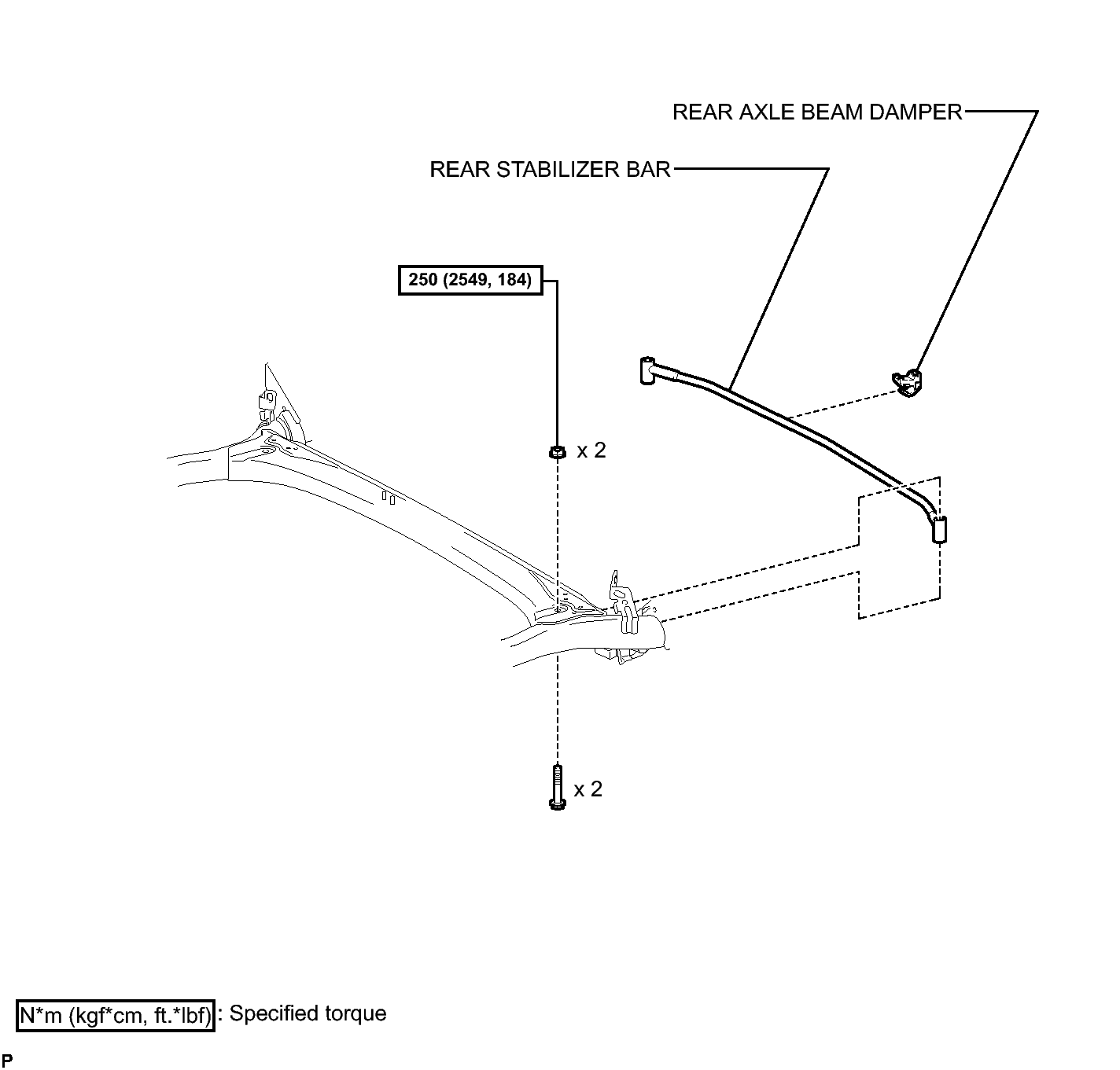

Fig 1: Identifying Rear Stabilizer Bar Replacement Components With Torque Specifications

GTY204769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
