Vehicle Stability Control (VSC) (Diagnostic Codes (C0226-U0126) & Symptom Tests)
>>
Vehicle Stability Control System
>>
VSC OFF Indicator Light Remains ON
>>
Wiring Diagram
VSC OFF Indicator Light Remains ON: Wiring Diagram

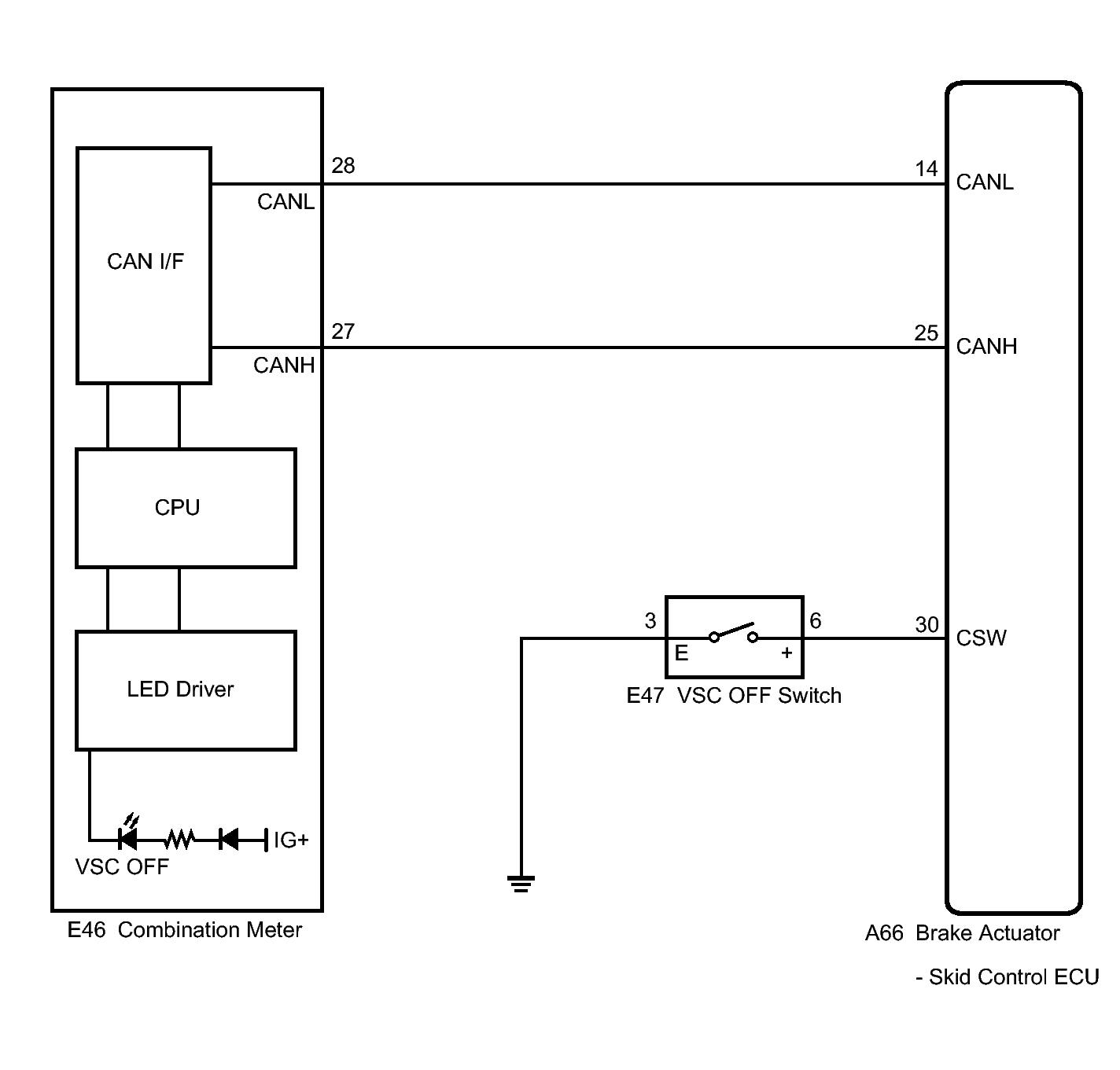

Fig 1: VSC OFF Indicator Light Remains On - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
