Slip Indicator Light Remains ON: Wiring Diagram

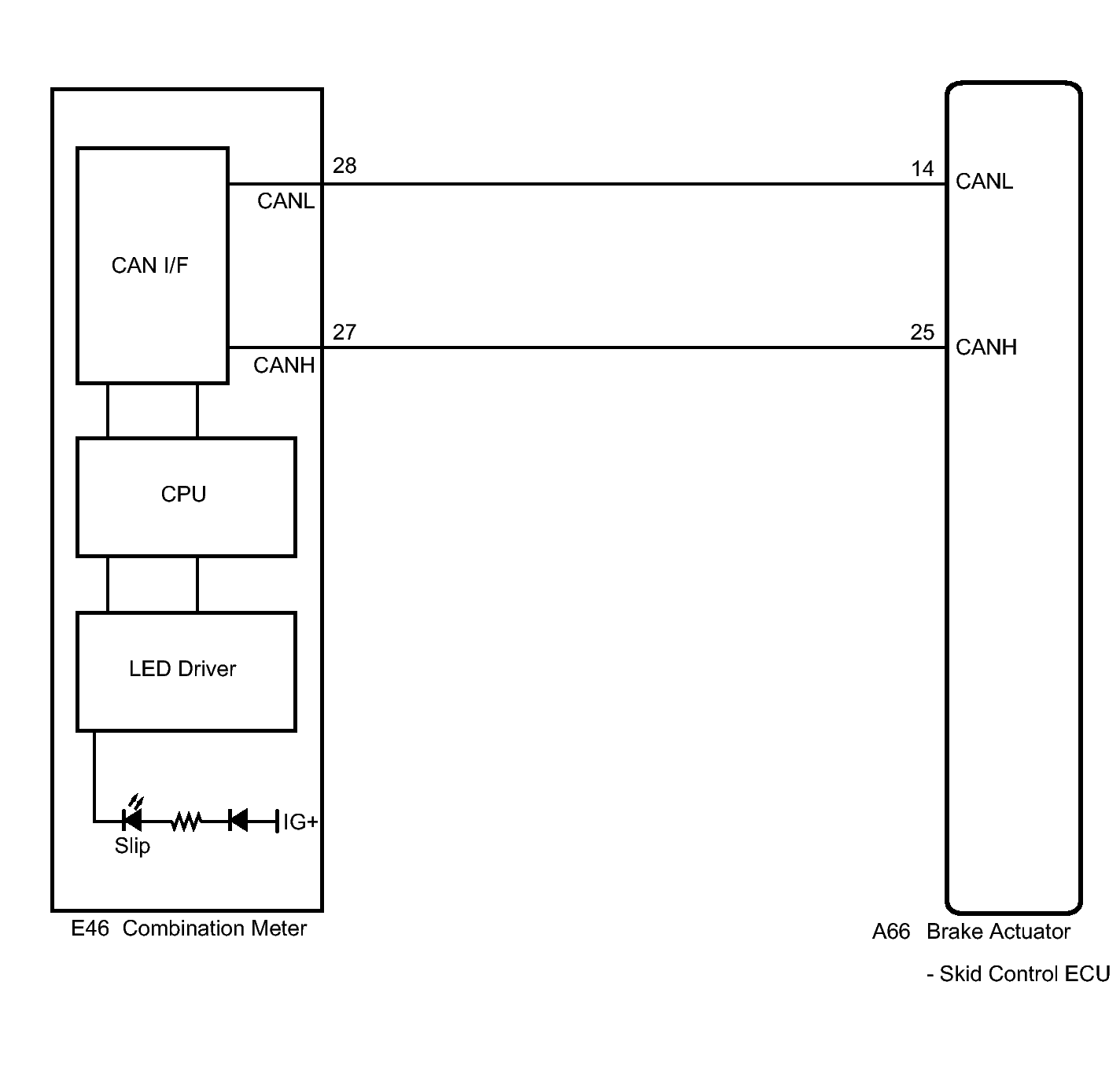

Fig 1: Slip Indicator Light Remains On - Wiring Diagram

GTY181382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
