ABS Warning Light Remains ON: Wiring Diagram

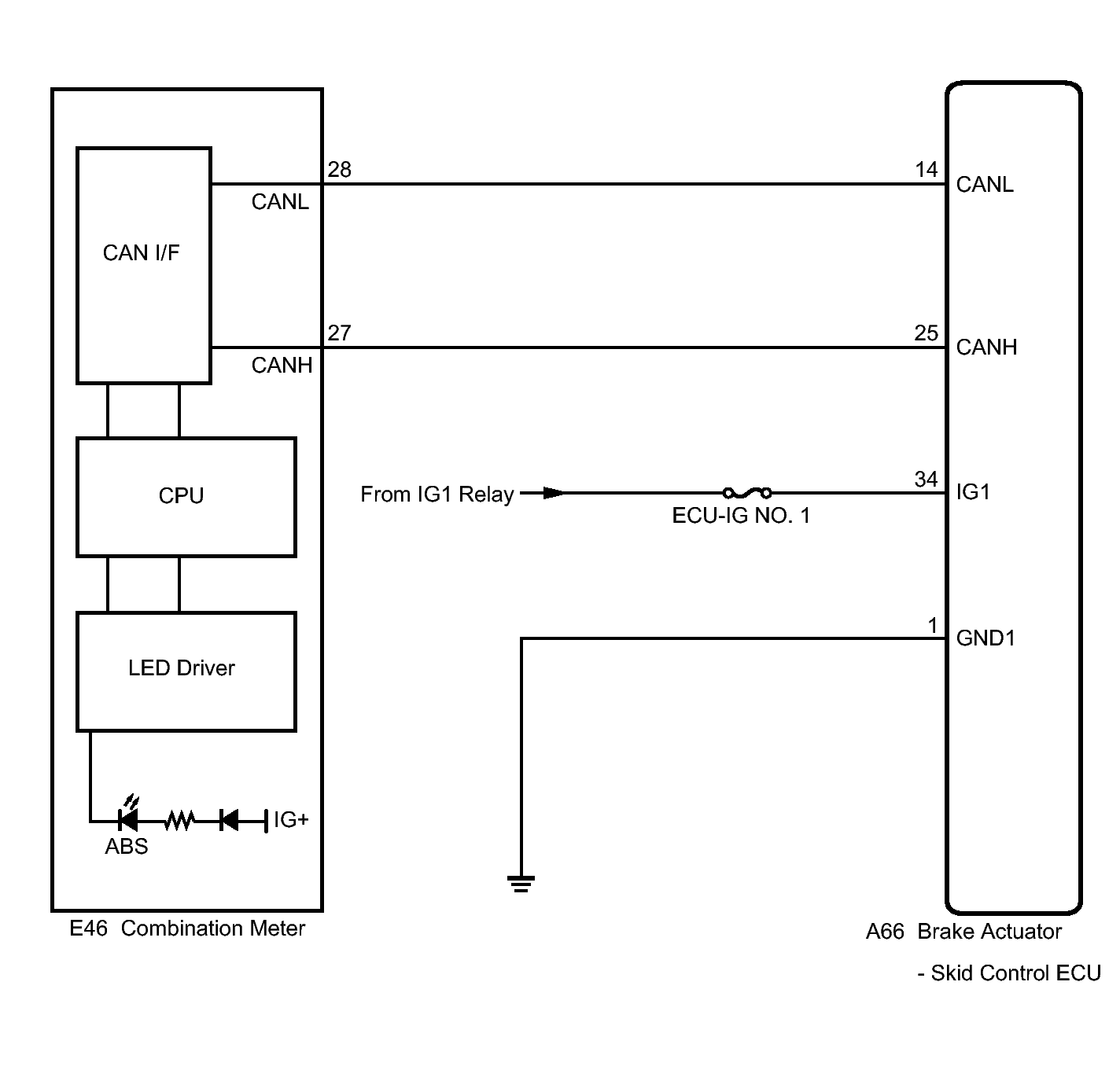

Fig 1: ABS Warning Light Remains On - Wiring Diagram

GTY187905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
