TS and CG Terminal Circuit: Procedure

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)

Disconnect the skid control ECU connector.

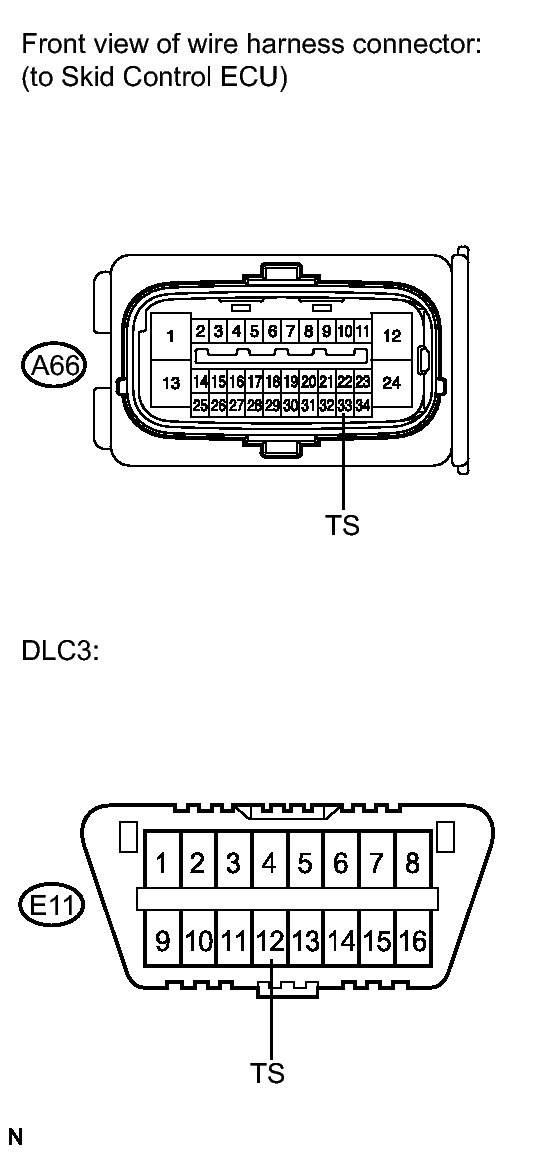

Fig 1: Identifying Skid Control ECU And DLC3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
A66-33 (TS) - E11-12 (TS)	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Fig 2: Identifying DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
E11-4 (CG) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (TS of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Fig 3: Identifying DLC3 Connector Terminals

Standard Resistance

Tester Connection	Condition	Specified Condition
E11-12 (TS) - Body ground	Always	10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part. Refer to PROBLEM SYMPTOMS TABLE .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 4

REPLACE BRAKE ACTUATOR ASSEMBLY. Refer to REMOVAL
