DTC C1425: Open in Stop Light Switch Circuit: Wiring Diagram

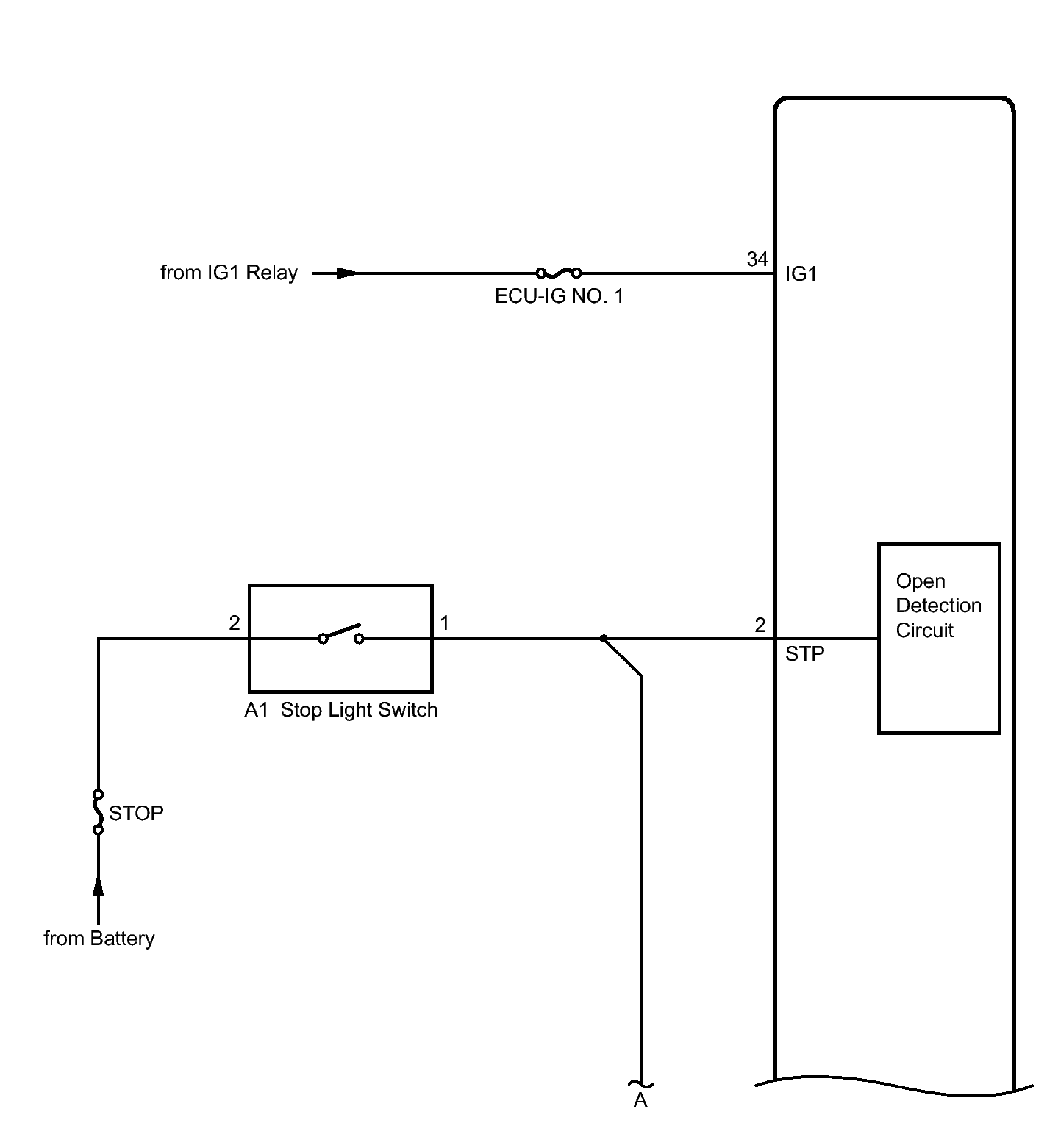

Fig 1: Open In Stop Light Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

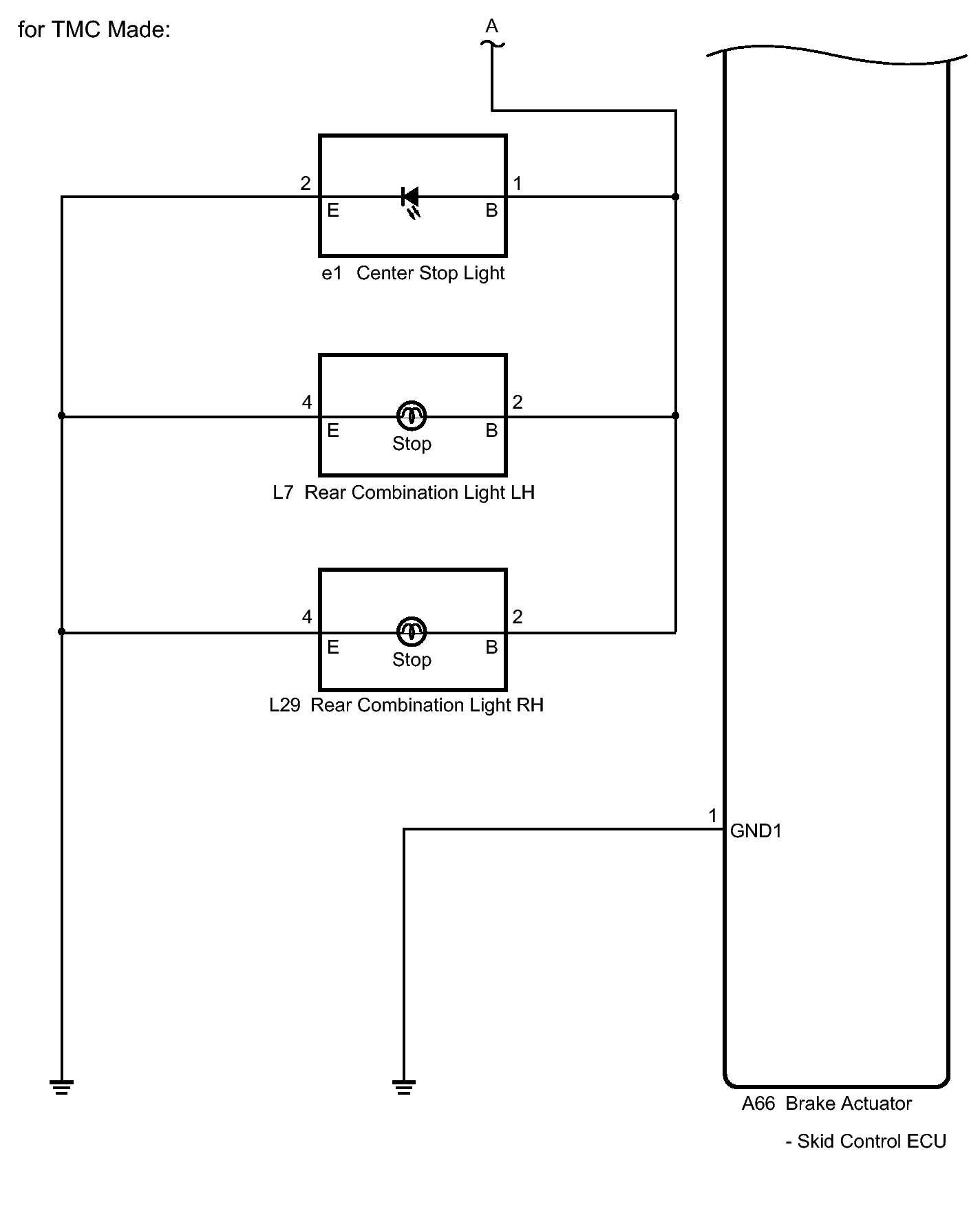

Fig 2: Open In Stop Light Switch - Wiring Diagram (For TMC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Open In Stop Light Switch - Wiring Diagram (For NUMMI, TMMC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
