Starting System (2AZ-FE): Starter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See REMOVAL )
REMOVE AIR CLEANER CASE (See REMOVAL )
REMOVE BATTERY
REMOVE BATTERY CARRIER
DISCONNECT WIRE HARNESS
1. Release the claw, and disconnect the wire harness.

  Fig 1: Locating Claw And Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STARTER ASSEMBLY (for Manual Transaxle)
1. Disconnect the terminal 50 connector from the starter assembly.
2. Remove the nut and disconnect the wire harness from terminal 30.

  Fig 2: Locating Starter Assembly Wire Harness Nut And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts, clutch accumulator bracket, wire harness clamp bracket, and starter assembly.

  Fig 3: Locating Bolts, Clutch Accumulator Bracket, Wire Harness Clamp Bracket And Starter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STARTER ASSEMBLY (for Automatic Transaxle)
1. Disconnect the terminal 50 connector from the starter assembly.
2. Remove the nut and disconnect the wire harness from terminal 30.

  Fig 4: Locating Starter Assembly Wire Harness Nut And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, wire harness clamp bracket and starter assembly.

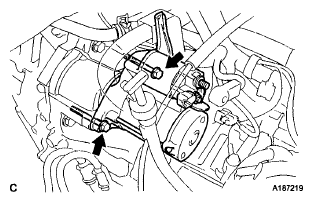

  Fig 5: Locating Wire Harness Clamp Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
