Navigation Antenna Cord: Removal

REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
HINT:

Refer to the procedures up to Remove Upper Instrument Panel Sub-assembly (See REMOVAL ).
REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (See REMOVAL )
REMOVE NAVIGATION ANTENNA CORD SUB-ASSEMBLY
1. Disengage the 2 clamps and remove the navigation antenna cord sub-assembly.

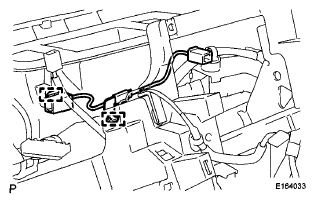

  Fig 1: Identifying Navigation Antenna Cord Sub-Assembly And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
