FRONT SUSPENSION MEMBER (for 4WD): Installation

TEMPORARILY INSTALL FRONT LOWER SUSPENSION ARM LH (See INSTALLATION )
TEMPORARILY INSTALL FRONT LOWER SUSPENSION ARM RH
HINT:

Perform the same procedure as the LH side.
TEMPORARILY INSTALL CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY
1. Temporarily install the center engine mounting member sub-assembly with the 4 bolts.
TEMPORARILY INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
1. Temporarily install the 4 bolts.

  Fig 1: Locating Center Engine Mounting Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Locating Front Suspension Crossmember Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Temporarily install the front suspension member sub-assembly with the bolt and 2 nuts.

  Fig 3: Locating Front Suspension Crossmember Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT STEERING LINK ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 FRONT STABILIZER BRACKET LH
1. Install the No. 1 front stabilizer bracket LH with the 2 bolts.
  Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)
INSTALL NO. 1 FRONT STABILIZER BRACKET RH
HINT:

Perform the same procedure as the LH side.

Fig 4: Locating Front Stabilizer Bracket LH And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

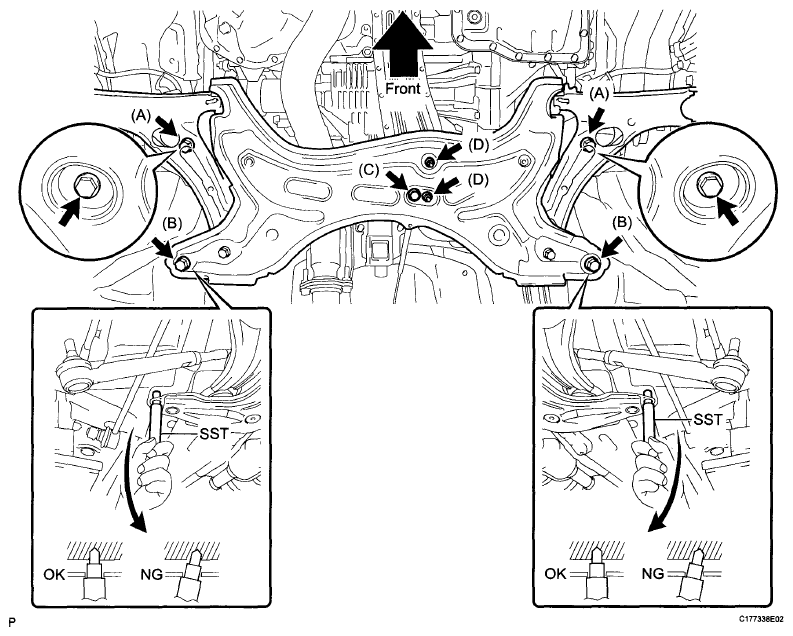

1. While alternately inserting SST into the reference holes on the front suspension crossmember RH and LH, tighten the 2 bolts (A), 2 bolts (B), bolt (C), and 2 nuts (D) on the RH and LH sides to the respective specified torque in several steps.
  SST 09670-00010

  Fig 5: Locating Front Suspension Crossmember Sub-Assembly Nuts And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: Bolt A

  113 N*m (1152 kgf*cm, 83 ft.*lbf)

  Bolt B

  157 N*m (1600 kgf*cm, 116 ft.*lbf)

  Bolt C

  52 N*m (530 kgf*cm, 38 ft.*lbf)

  Nut D

  52 N*m (530 kgf*cm, 38 ft.*lbf)
FULLY TIGHTEN CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY
1. Fully tighten the center engine mounting member sub-assembly with the 4 bolts.
  Torque: Bolt A

  60 N*m (612 kgf*cm, 44 ft.*lbf)

  Bolt B

  81 N*m (826 kgf*cm, 60 ft.*lbf)

  Fig 6: Locating Center Engine Mounting Member Sub-Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT HOOK ASSEMBLY
1. Install the front hook assembly with the 2 bolts.
  Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
CONNECT FRONT LOWER SUSPENSION ARM LH (See INSTALLATION )
CONNECT FRONT LOWER SUSPENSION ARM RH
HINT:

Perform the same procedure as the LH side.
INSTALL ENGINE UNDER COVER LH

Fig 7: Locating Front Hook Assembly And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER RH
CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See INSTALLATION )
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL COLUMN HOLE COVER SILENCER SHEET (See INSTALLATION )
INSTALL FRONT WHEELS
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
STABILIZE SUSPENSION (See INSTALLATION )
FULLY TIGHTEN FRONT LOWER SUSPENSION ARM LH (See INSTALLATION )
FULLY TIGHTEN FRONT LOWER SUSPENSION ARM RH
HINT:

Perform the same procedure as the LH side.
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:

Inspect and adjust front wheel alignment (See FRONT WHEEL ALIGNMENT ).
