DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

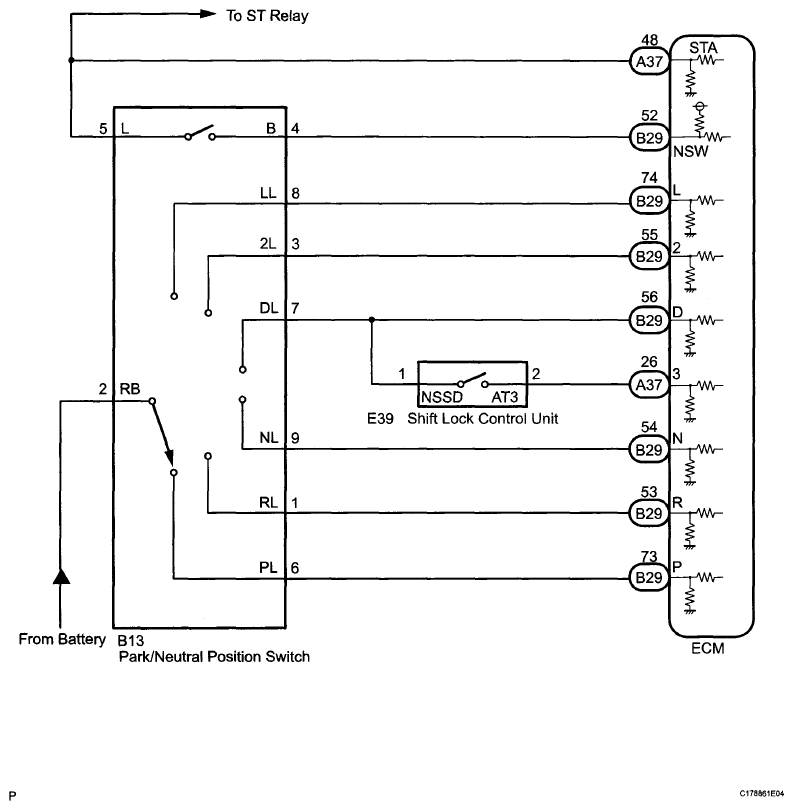

Fig 1: Park/Neutral Position Switch And ECM - Wiring Diagram
G06043073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
