EXHAUST PIPE AND CATALYTIC CONVERTER (for 2WD): Removal

REMOVE TAIL EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts and 2 compression springs.
2. Remove the tail exhaust pipe assembly from the 3 exhaust pipe supports, (for Torsion beam type suspension)
3. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports, (for Double wishbone type suspension)
4. Remove the gasket from the center exhaust pipe assembly.
5. Remove the exhaust tail pipe baffle sub-assembly, (with baffle model)
REMOVE HEATED OXYGEN SENSOR (See REMOVAL )

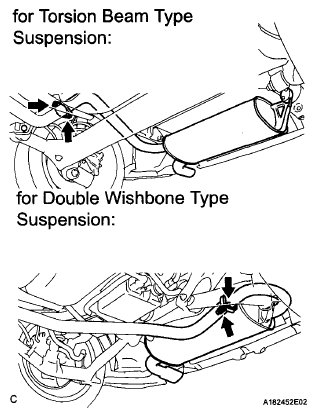

Fig 1: Locating Bolts And Compression Springs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts.
2. Remove the center exhaust pipe assembly from the 2 exhaust pipe supports, (for Torsion beam type suspension)
3. Remove the center exhaust pipe assembly from the 3 exhaust pipe supports, (for Double wishbone type suspension)
4. Remove the gasket from the front exhaust pipe assembly.

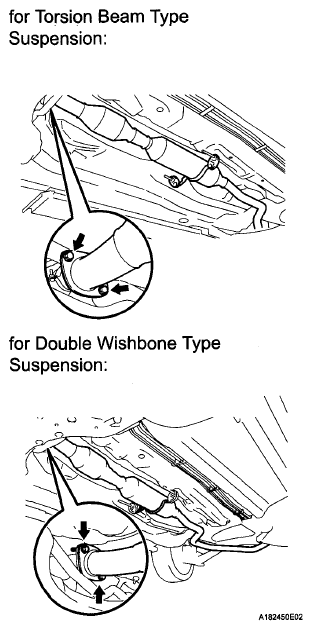

  Fig 2: Locating Bolts And Compression Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts, 2 compression springs and front exhaust pipe assembly.
2. Remove the gasket from the exhaust manifold.

  Fig 3: Locating Front Exhaust Pipe Assembly Bolts And Compression Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
