Front Bumper: Installation

INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler)
1. w/ Fog Light:
  1. Connect each fog light connector.
2. Engage the guide and 4 claws to install the front bumper assembly.
  HINT:

  Use the same procedure for the RH side and LH side.

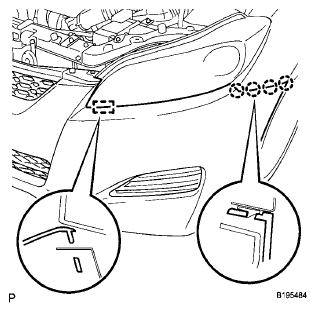

  Fig 1: Identifying Front Bumper Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 clips and 2 radiator grille protectors.

  Fig 2: Identifying Radiator Grille Protectors And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. for 2ZR-FE:
  1. Install the 2 clips.
  2. Install the 6 screws.
  Fig 3: Identifying Radiator Grille Protectors Clips And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. for 2AZ-FE:
  1. Install the 2 clips.
  2. Install the 8 screws.
  Fig 4: Identifying Front Bumper Clip And Screw (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the clip and pin hold clip.
  HINT:

  Use the same procedure for the RH side and LH side.
INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler)
1. Connect each fog light connector.

  Fig 5: Locating Clip And Pin Hold Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the guide and 4 claws to install the front bumper assembly.
  HINT:

  Use the same procedure for the RH side and LH side.

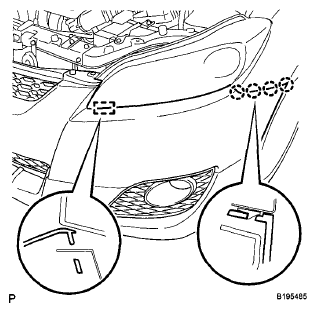

  Fig 6: Identifying Front Bumper Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 clips and 2 radiator grille protectors.

  Fig 7: Identifying Radiator Grille Protectors Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. for 2ZR-FE:
  1. Install the 2 clips.
  2. Install the 6 screws.
  Fig 8: Identifying Radiator Grille Protectors Clips And Screws (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. for 2AZ-FE:
  1. Install the 2 clips.
  2. Install the 8 screws.
  Fig 9: Identifying Radiator Grille Protectors Clips And Screws (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the clip and pin hold clip.
  HINT:

  Use the same procedure for the RH side and LH side.
VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) (See ADJUSTMENT )
PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) (See ADJUSTMENT )
INSPECT FOG LIGHT AIMING (w/ Fog Light) (See ADJUSTMENT )
ADJUST FOG LIGHT AIMING (w/ Fog Light) (See ADJUSTMENT )

Fig 10: Installing Clip And Pin Hold Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
