On-Vehicle Inspection

INSPECT HOOD SUB-ASSEMBLY

Check that the clearance measurements of areas A through D are within each standard range.

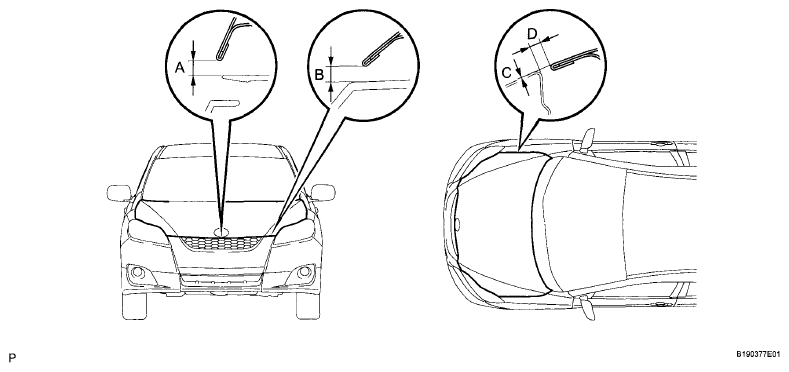

Fig 1: Identifying Hood Clearances

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

HOOD CLEARANCES SPECIFICATIONS

Area	Measurement	Area	Measurement
A	6.1 mm (0.240 in.)	C	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
B	5.6 mm (0.221 in.)	D	2.3 to 5.3 mm (0.0906 to 0.209 in.)
