Front Wiper Motor: Removal

  1. REMOVE FRONT WIPER ARM HEAD CAP
    1. Remove the 2 front wiper arm head caps.
    Fig 1: Identifying Front Wiper Arm Head Caps
    G06038558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. Remove the nut and the front wiper arm and blade assembly LH.

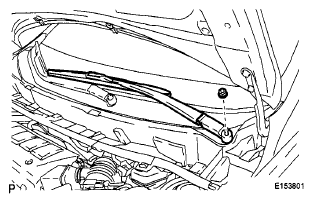

    Fig 2: Identifying Front Wiper Arm And Blade Assembly LH Nut
    G06038559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Remove the nut and the front wiper arm and blade assembly RH.
    Fig 3: Identifying Front Wiper Arm And Blade Assembly RH Nut
    G06038560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD TO COWL TOP SEAL
    1. Disengage the 2 claws.
    2. Disengage the 7 clips and remove the hood to cowl top seal.

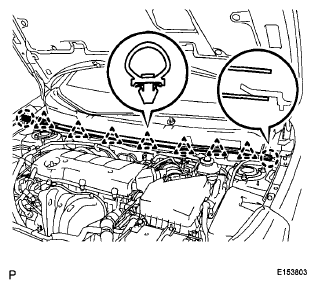

    Fig 4: Identifying Hood To Cowl Top Seal Clips And Claws
    G06038561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COWL TOP VENTILATOR LOUVER RH
    1. Remove the clip.
    2. Disengage the 12 claws and guide, and remove the cowl top ventilator louver RH as shown in the illustration.

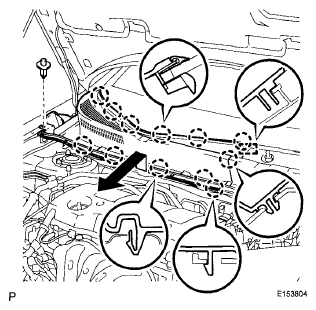

    Fig 5: Identifying Cowl Top Ventilator Louver RH Claws And Guide
    G06038562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL TOP VENTILATOR LOUVER LH
    1. Remove the clip.
    2. Disengage the 7 claws and remove the cowl top ventilator louver LH as shown in the illustration.

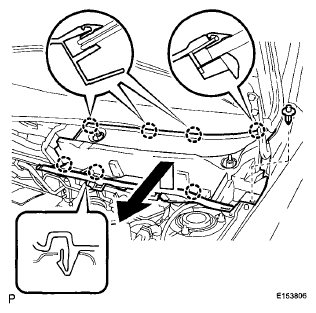

    Fig 6: Identifying Cowl Top Ventilator Louver LH Claws And Guide
    G06038563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 bolts and the windshield wiper motor and link assembly as shown in the illustration.

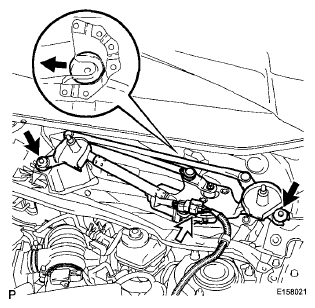

    Fig 7: Locating Windshield Wiper Motor And Link Assembly Bolts And Connector
    G06038564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disconnect the rod of the windshield wiper link assembly from the crank arm pivot of the windshield wiper motor assembly as shown in the illustration.
      Fig 8: Disconnecting Rod Of Windshield Wiper Link Assembly From Crank Arm Pivot Of Windshield Wiper Motor Assembly
      G06038565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the 3 bolts and the windshield wiper motor assembly.
    Fig 9: Identifying Windshield Wiper Motor Assembly Bolts And Connector
    G06038566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
