Speed Signal Circuit: Wiring Diagram

  1. for 2ZR-FE

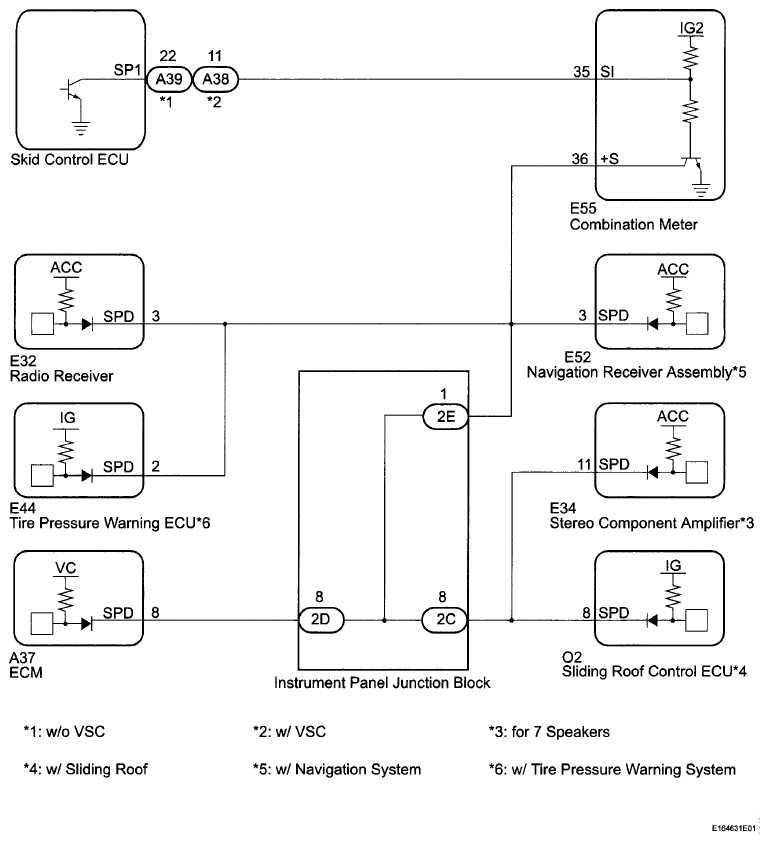

    Fig 1: Instrument Panel Junction Block - Wiring Diagram (For 2ZR-FE)
    G06035964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2AZ-FE

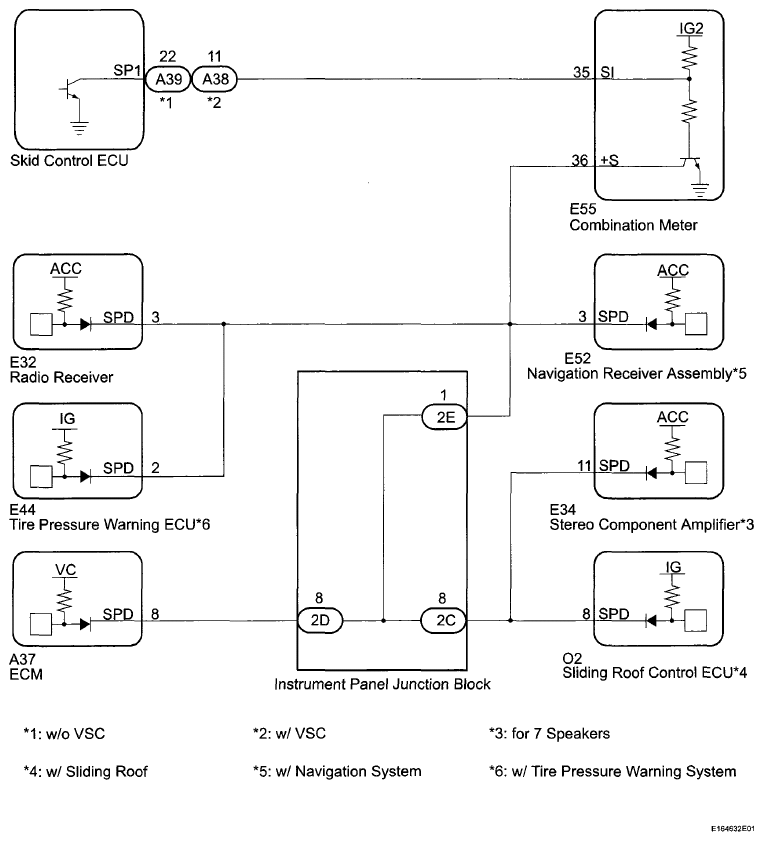

    Fig 2: Instrument Panel Junction Block - Wiring Diagram (For 2AZ-FE)
    G06035963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
