Parts Location

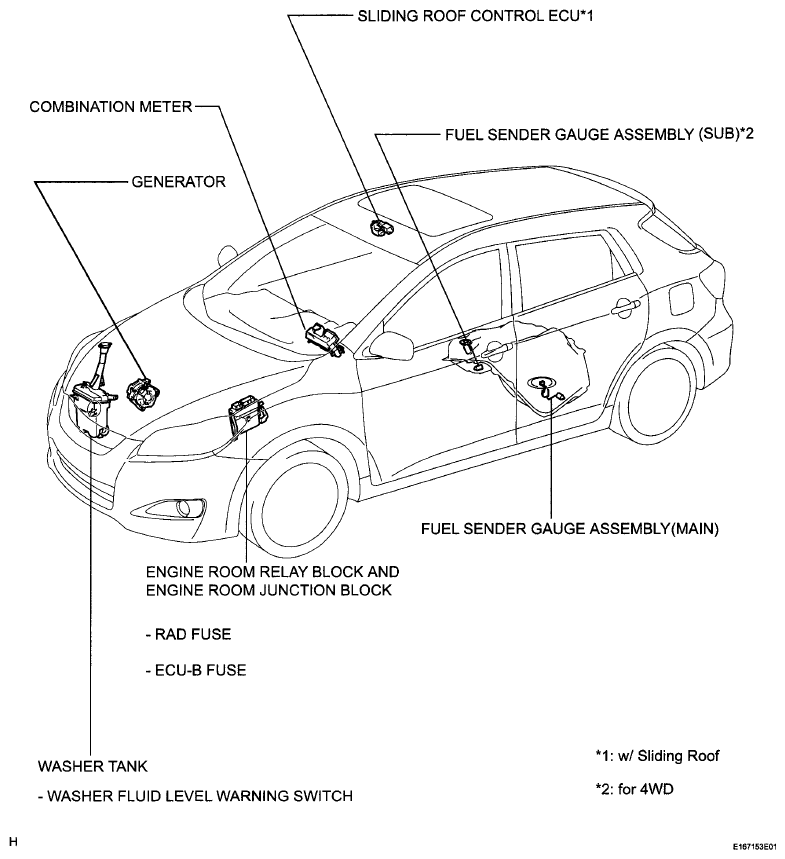

Fig 1: Identifying Meter And Gauge System Parts Location (1 Of 3)
G06036629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

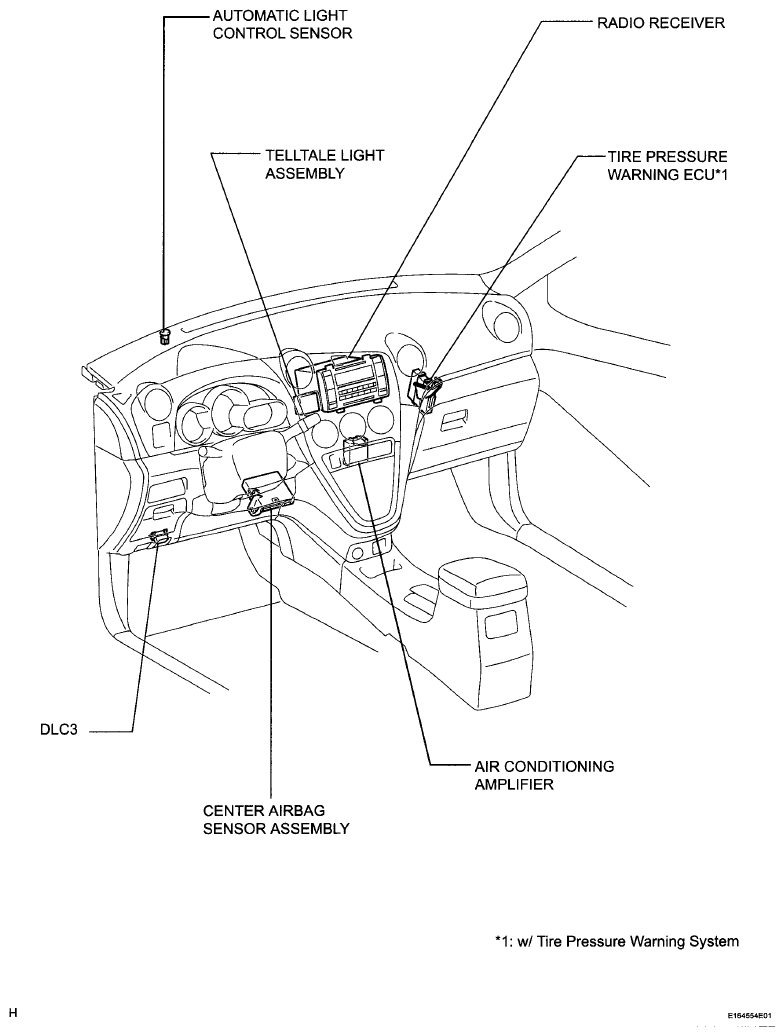

Fig 2: Identifying Meter And Gauge System Parts Location (2 Of 3)
G06036630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

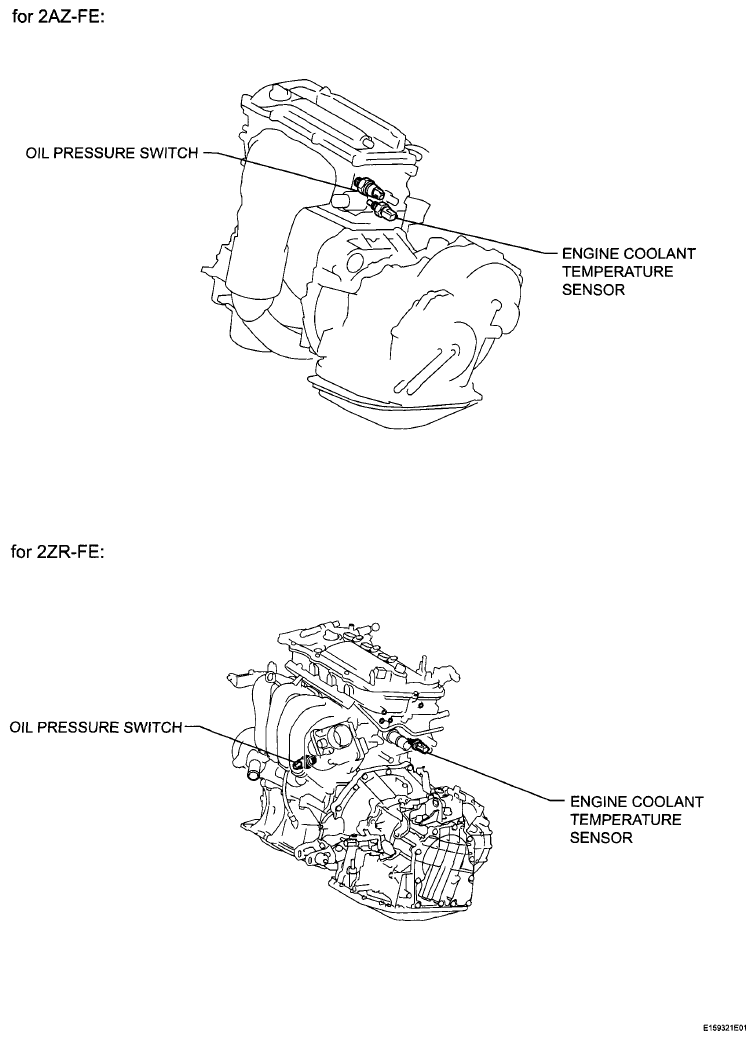

Fig 3: Identifying Meter And Gauge System Parts Location (3 Of 3)
G06036631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
