DTC B1500: Fuel Sender Open Detected: Wiring Diagram

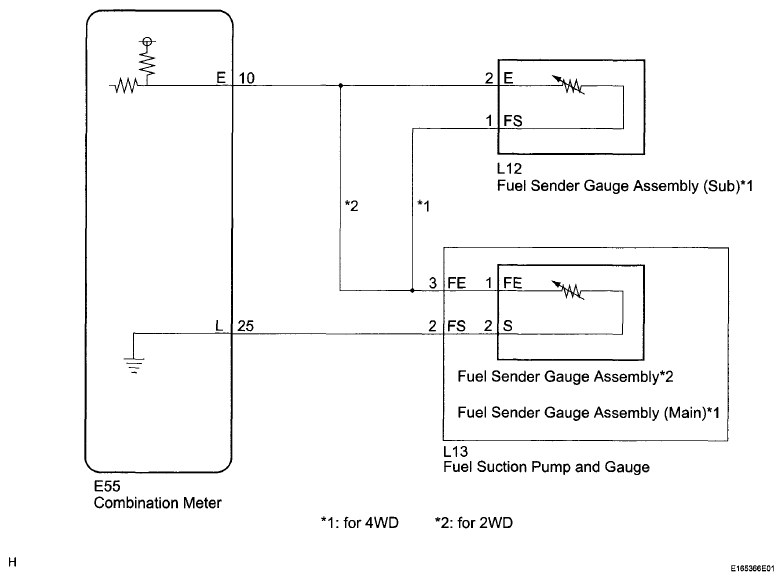

Fig 1: Combination Meter - Wiring Diagram

G06036641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
