Stop Light Switch: Installation

INSTALL STOP LIGHT SWITCH ASSEMBLY
1. Insert the stop light switch assembly until the rod hits the cushion.
  NOTE: When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not depressed.

  Fig 1: Inserting Stop Light Switch Assembly Until Rod Hits Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Make a quarter turn clockwise to install the stop light switch assembly.
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf) or less

  NOTE: When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not depressed.

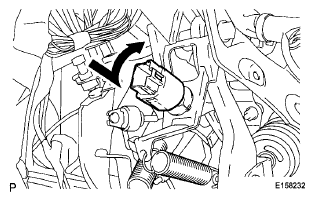

  Fig 2: Turning Quarter Clockwise To Install Stop Light Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.

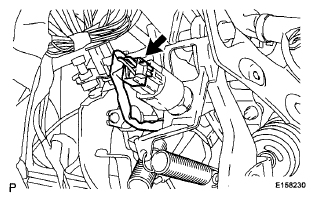

  Fig 3: Locating Stop Light Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the protrusion of the rod.
  Protrusion of the rod:

  1.5 to 2.5 mm (0.0591 to 0.0984 in.)

  If the protrusion is not within the specified range, adjust it.
NOTE: Do not depress the brake pedal.

Fig 4: Checking Protrusion Of Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
