DTC P0351 Ignition Coil "A" Primary / Secondary Circuit; DTC P0352 Ignition Coil "B" Primary / Secondary Circuit; DTC P0353 Ignition Coil "C" Primary / Secondary Circuit; DTC P0354 Ignition Coil "D" Primary / Secondary Circuit: Description

HINT:

A direct ignition system is used on this vehicle.

The direct ignition system is an ignition system in which each cylinder is ignited by its own ignition coil and spark plug. The secondary wiring of each ignition coil generates a powerful voltage which is applied directly to each spark plug. The spark passes from the center electrode of the spark plug to the ground electrode.

The ignition coils of this system each have a built-in igniter.

The ECM determines the ignition timing and transmits the ignition (IGT) signals to each cylinder. Using the IGT signal, the ECM turns the power transistor inside the igniter on and off. The power transistor, in turn, switches on and off the current to the primary coil. When the current to the primary coil is cut off, a powerful voltage is generated in the secondary coil. This voltage is applied to the spark plugs, causing them to spark inside the cylinders. As the ECM cuts the current to the primary coil, the igniter sends back an ignition confirmation (IGF) signal to the ECM, for each cylinder ignition.

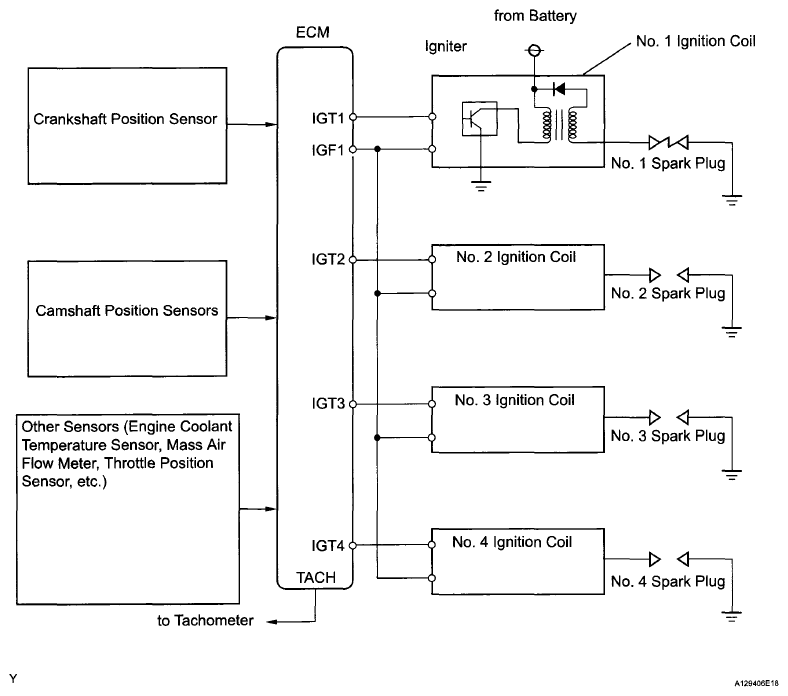

Fig 1: Spark Plug - Circuit Diagram
G06040074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITION CHART

DTC No. DTC Detection Conditions Trouble Areas
P0351
P0352
P0353
P0354
No IGF signal to ECM while engine running (1 trip detection logic)
  • Ignition system
  • Open or short in IGF1 or IGT circuit (1 to 4) between ignition coil and ECM
  • No. 1 to No. 4 ignition coils
  • ECM
Fig 2: Identifying Waveform
G06040075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference: Inspection using an oscilloscope.

While cranking or idling the engine, check the waveform between terminals IGT (1 to 4) and E1, and IGF1 and E1 of the ECM connector.

TERMINAL REFERENCE

ECM Terminal Name Between IGT (1 to 4) and E1 Between IGF1 and E1
Tester Range 2 V/DIV, 20 ms/DIV
Condition Idling
