Rear Stabilizer Bar: Removal

REMOVE STABILIZER CONTROL VALVE PROTECTOR (See REMOVAL )
OPEN STABILIZER CONTROL WITH ACCUMULATOR HOUSING SHUTTER VALVE (See REMOVAL )
REMOVE REAR WHEEL
REMOVE TAILPIPE ASSEMBLY (See REMOVAL )
REMOVE EXHAUST CENTER PIPE ASSEMBLY (See REMOVAL )
DISCHARGE SUSPENSION FLUID PRESSURE (See REMOVAL )
SUPPORT REAR AXLE HOUSING ASSEMBLY (See REMOVAL )
REMOVE REAR STABILIZER END BRACKET
1. Remove the 2 bolts and disconnect the stabilizer end bracket.

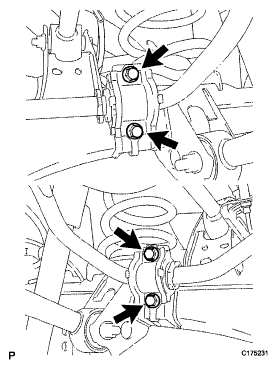

  Fig 1: Locating Rear Stabilizer End Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR STABILIZER BAR SUB-ASSEMBLY
1. Remove the nut and disconnect the stabilizer link assembly from the stabilizer bar.
  NOTE: Do not miss the ball joint dust cover protector.

  HINT:

  If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud.

  Fig 2: Locating Stabilizer Link Assembly Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and stabilizer bar with the bushes and brackets.

  Fig 3: Locating Stabilizer Bar With Bushes And Brackets Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STABILIZER LINK SUB-ASSEMBLY
1. Remove the nut, 3 retainers and 2 cushions, and disconnect the stabilizer link from the bracket.

  Fig 4: Locating Stabilizer Link Sub-Assembly Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, bolt and stabilizer link.

  Fig 5: Locating Stabilizer Link Nut And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR STABILIZER CONTROL TUBE INSULATOR
1. Remove the 2 bolts and rear stabilizer control tube insulator.

  Fig 6: Locating Rear Stabilizer Control Tube Insulator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR STABILIZER CONTROL CYLINDER
1. Remove the 2 union bolts with the 2 gaskets and bolt, and disconnect the stabilizer control tube.
2. Remove the bolt and stabilizer control cylinder.

  Fig 7: Locating Rear Stabilizer Control Cylinder Union Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 2 STABILIZER LINK
1. Remove the 2 bolts, 2 nuts and No. 2 rear stabilizer link.

  Fig 8: Locating Rear Stabilizer Link Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR STABILIZER LINK ASSEMBLY
1. Remove the bolt, nut and rear stabilizer link assembly.

  Fig 9: Locating Rear Stabilizer Link Assembly Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SUSPENSION CONTROL BLEEDER PLUG
1. Remove the 2 rear suspension control bleeder plugs from the rear stabilizer control cylinder.

  Fig 10: Locating Rear Suspension Control Bleeder Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
