Front Upper Suspension Arm: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE STABILIZER CONTROL VALVE PROTECTOR  (See REMOVAL )
2. OPEN STABILIZER CONTROL WITH ACCUMULATOR HOUSING SHUTTER VALVE  (See REMOVAL )
3. REMOVE FRONT WHEEL
4. DISCONNECT SKID CONTROL SENSOR WIRE
   1. Remove the bolt and nut, and disconnect the sensor wire from the steering knuckle and suspension upper arm.

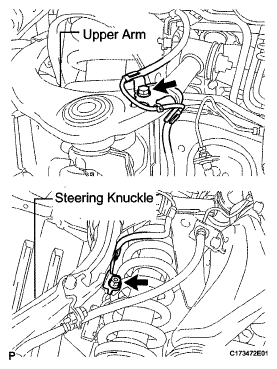

      Fig 1: Locating Steering Knuckle And Suspension Upper Arm Bolt And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. DISCONNECT STEERING KNUCKLE LH
   1. Support the front suspension lower arm LH with a jack.
   2. Remove the clip and the nut.
      Fig 2: Supporting Front Suspension Lower Arm With Jack

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using SST, disconnect the upper ball joint from the steering knuckle.

      SST 09628-62011

      NOTE: Do not damage the ball joint dust cover.
      Fig 3: Disconnecting Upper Ball Joint From Steering Knuckle With SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT FENDER APRON SEAL LH
   1. Using a clip remover, remove the 3 clips and apron seal.
      Fig 4: Locating Front Fender Apron Seal Clip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE FRONT FENDER APRON SEAL REAR LH
   1. Using a clip remover, remove the 4 clips and apron seal.
      Fig 5: Locating Front Fender Apron Seal Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE FRONT SUSPENSION UPPER ARM ASSEMBLY
   1. Remove the nut, bolt, 2 washers and suspension upper arm.
      Fig 6: Locating Front Suspension Upper Arm Assembly Bolt And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
