Brake Pedal: Components

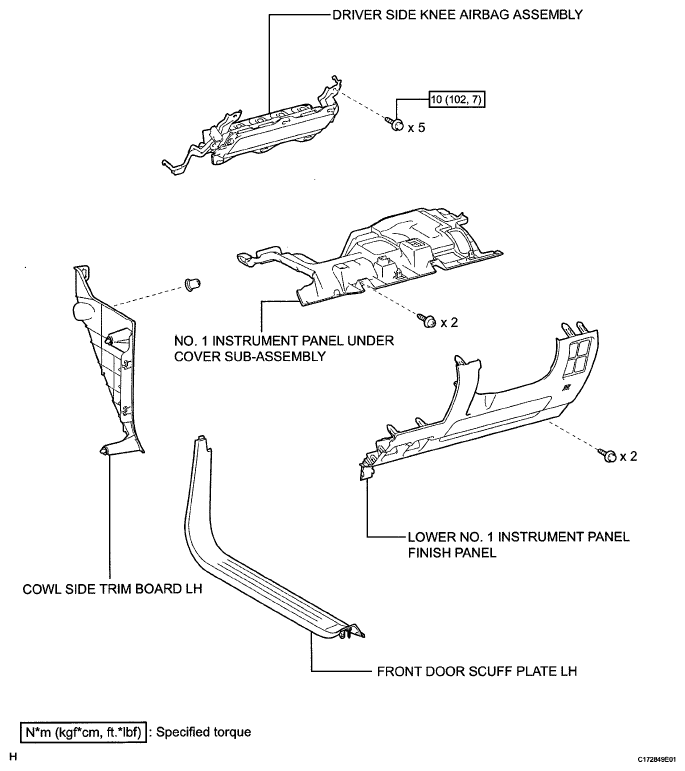

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (1 Of 2)
G05638917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

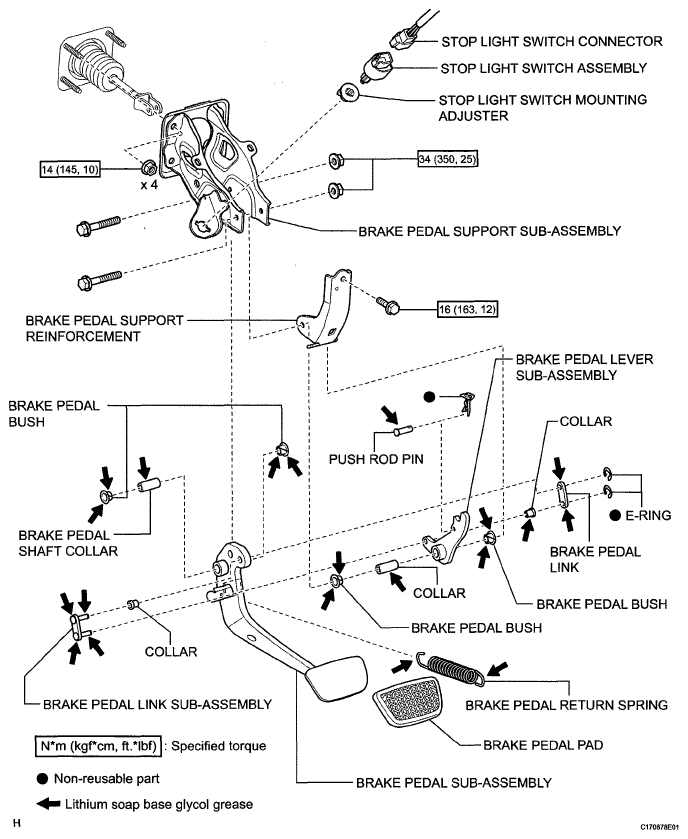

Fig 2: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
G05638918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
