Meter Illumination does not Dim at Night: Wiring Diagram

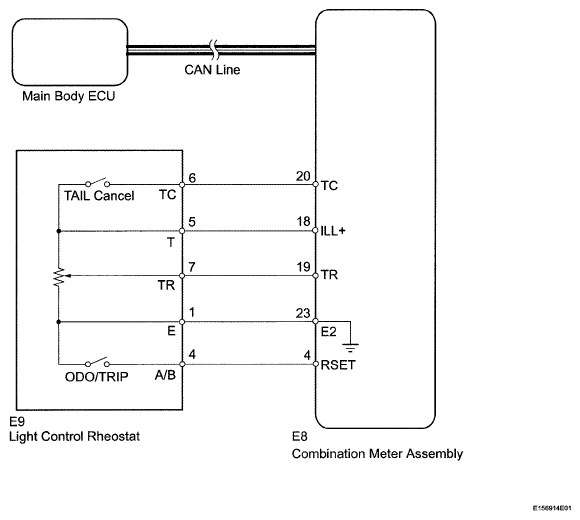

Fig 1: Meter Illumination - Wiring Diagram (Does Not Dim At Night)
G05635237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
