FRONT STABILIZER BAR (for 1AR-FE): Removal

HINT:

Refer to the procedure up to Remove Power Steering Link Assembly (See REMOVAL ).

1. Remove the 2 nuts and the front stabilizer link assembly LH.

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.

HINT:

Perform the same procedure as the LH side.

Fig 1: Removing Front Stabilizer Link Assembly LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

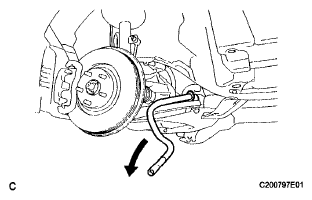

1. Remove the front stabilizer bar by removing it from the left side of the vehicle.

Fig 2: Removing Front Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 2 front stabilizer bracket LH from the front stabilizer bar bushing.

HINT:

Perform the same procedure as the LH side.

1. Remove the 2 No. 1 front stabilizer bar bushings from the front stabilizer bar.
