Rear Strut Rod: Components

Fig 1: Rear Strut Rod Replacement Components With Torque Specifications (1 Of 2)
G05417513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

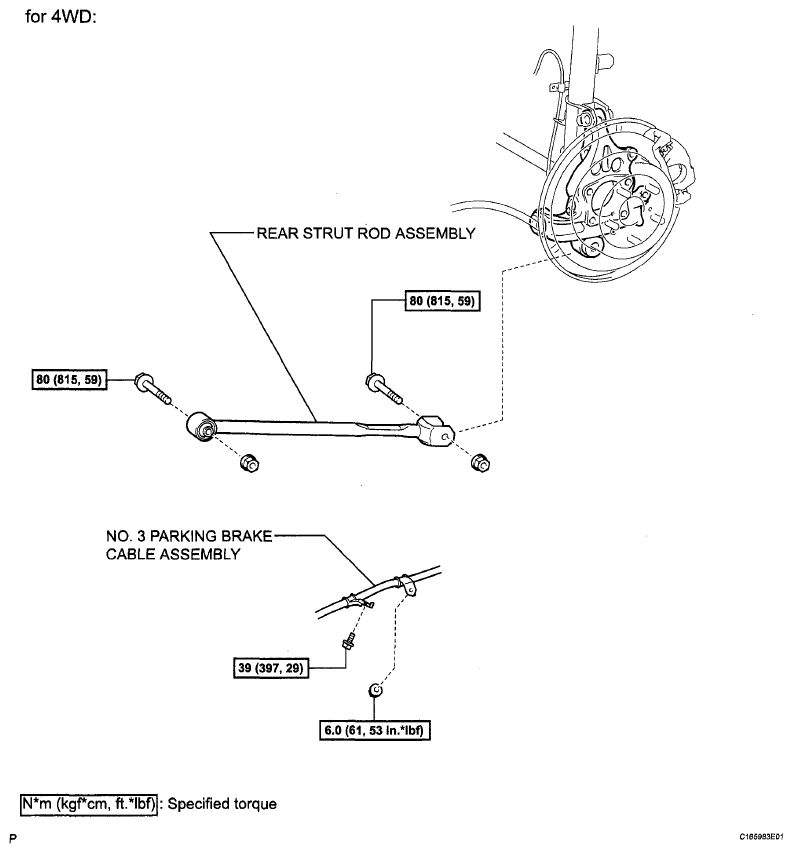

Fig 2: Rear Strut Rod Replacement Components With Torque Specifications (2 Of 2)
G06120402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
