REAR STABILIZER BAR (for 2WD): Components

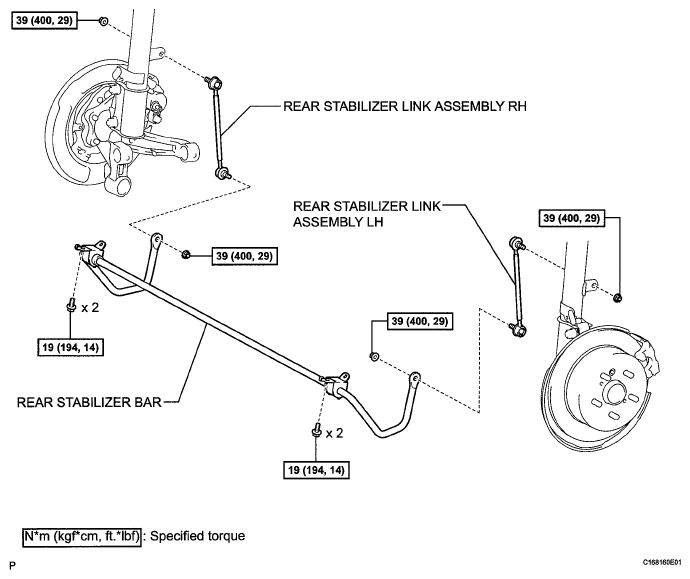

Fig 1: Rear Stabilizer Bar (2WD) Replacement Components With Torque Specifications (1 Of 2)
G05417524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

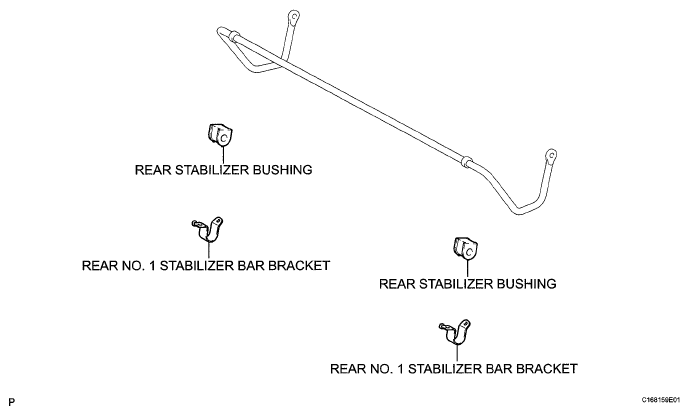

Fig 2: Rear Stabilizer Bar (2WD) Replacement Components With Torque Specifications (2 Of 2)
G05417525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
