FRONT STABILIZER BAR (for 1AR-FE): Components

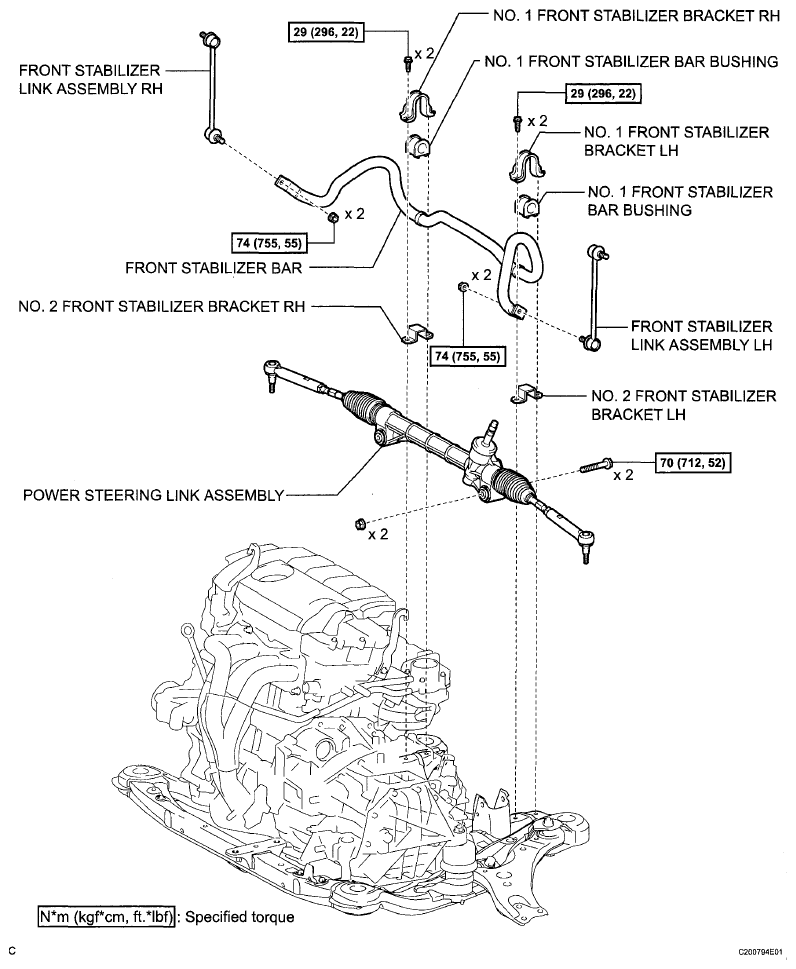

Fig 1: Front Stabilizer Bar (1AR-FE) Replacement Components With Torque Specifications

G06120214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
