Spiral Cable: Inspection

INSPECT SPIRAL CABLE

If there are any defects as mentioned below, replace the spiral cable with a new one:
Scratches, cracks, dents or chips on the connector or the spiral cable.

Fig 1: Identifying Claws And Pins
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inspect the spiral cable.

Measure the resistance according to the value (s) in the table below.

NOTE: To avoid breakage of the spiral cable, do not turn the spiral cable more than necessary.

If the value is not within the specified range, replace the spiral cable.

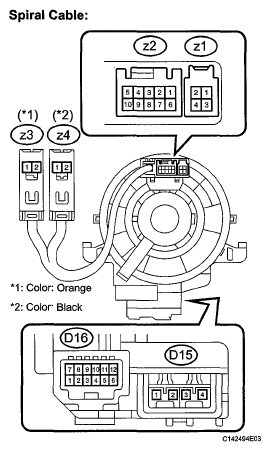

Fig 2: Inspecting Spiral Cable

Standard resistance

RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
z2-1 - z1-2	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-1 - D16-8 (HO)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-2 - D16-9 (EAC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-3-D16-10 (AC1)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
22-4 - D16-11 (ASL)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z1-5-E6-12 (IL+2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-6 - z1-4	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z1-3 - D16-1 (CCS)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-6 - D16-2 (ECC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-5 - D16-3 (+DP)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-8 - D16-4 (EAU)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-9 - D16-5 (AU2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z2-10 - D16-6 (AU1)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z1-2 - D16-8 (HO)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z1-3 - D16-1 (CCS)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z1-4 - D16-2 (ECC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z3-1 (D-) - D15-2 (D-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z3-2 (D+) - D15-1 (D+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z4-1 (D2-) - D15-3 (D2-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
z4-2 (D2+) - D15-4 (D2+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
