Section 9 (Emission Control System (1AR-FE))
>>
Emission Control System
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

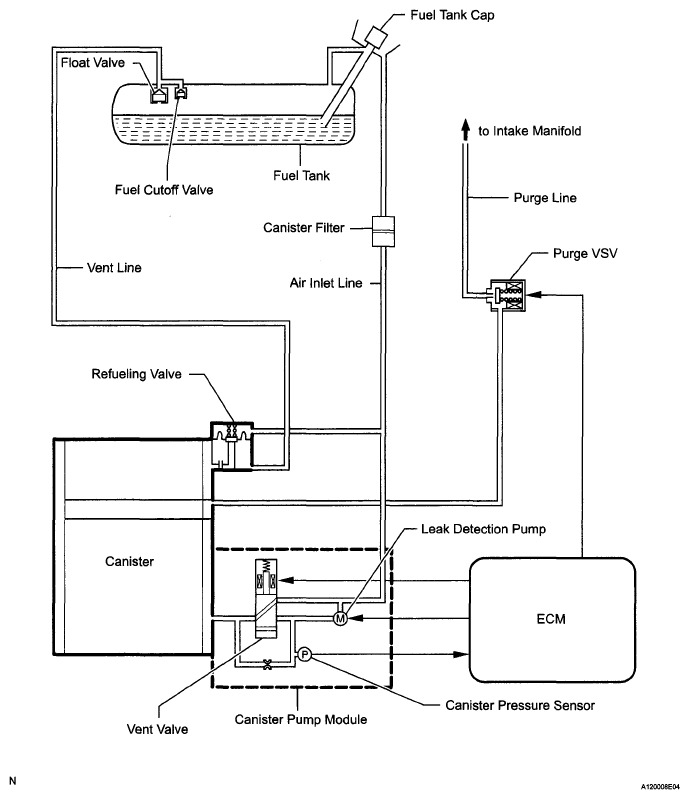

Fig 1: Emission Control System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

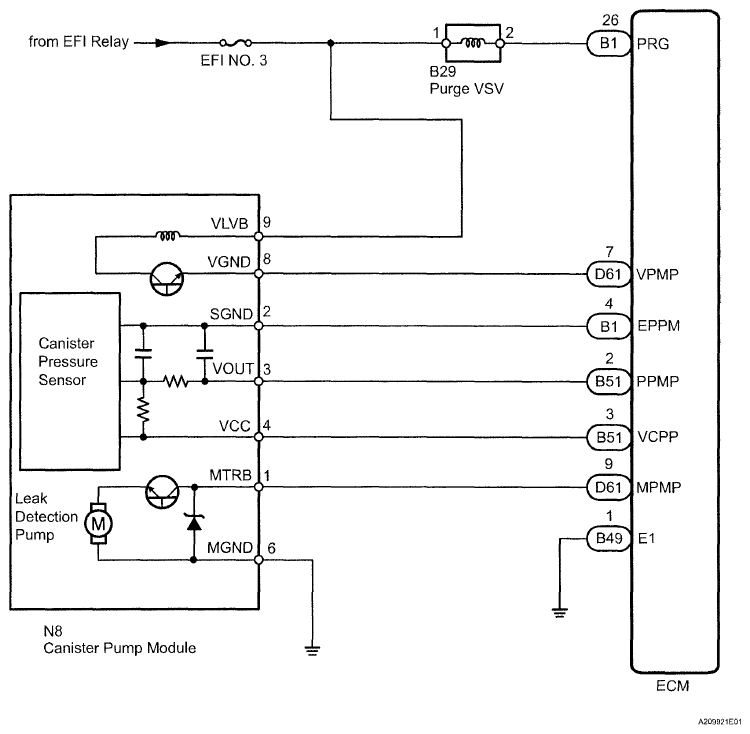

Fig 2: Emission Control System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
