Water Pump: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 2)
G06115374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

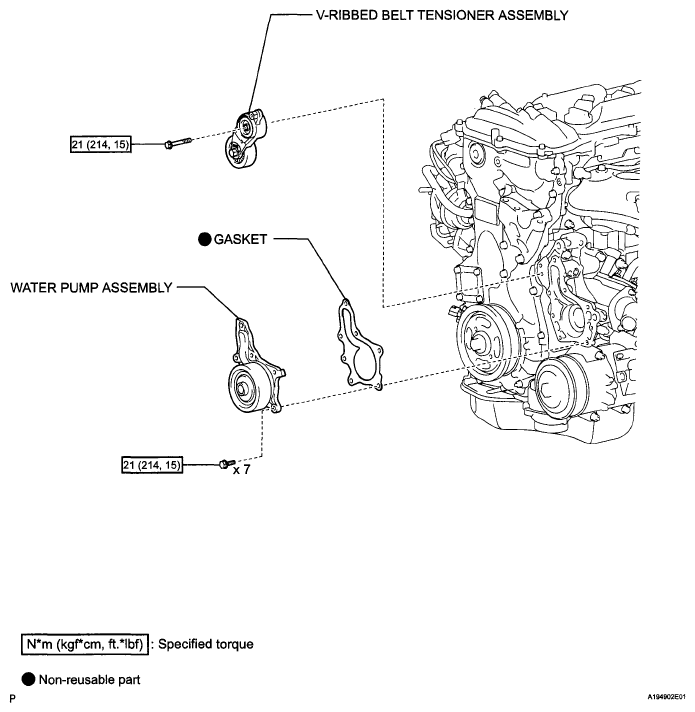

Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 2)
G05998868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
