Section 8 (Engine Cooling System (1AR-FE)): Radiator: Components

WARNING: This page is about a different variant/trim than selected.

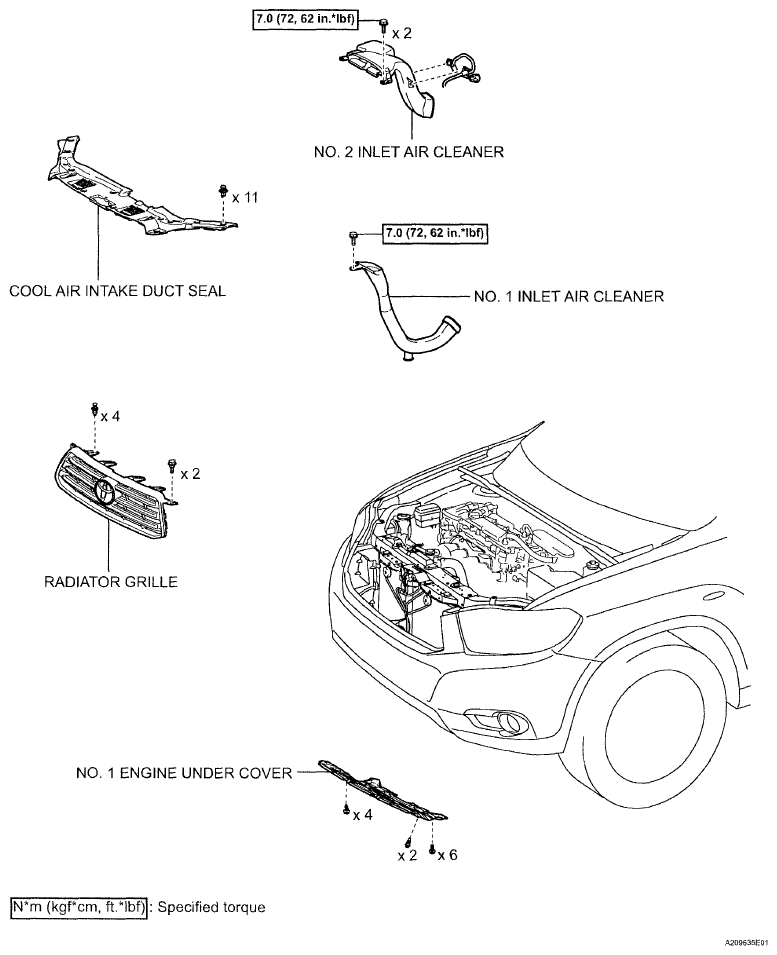

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

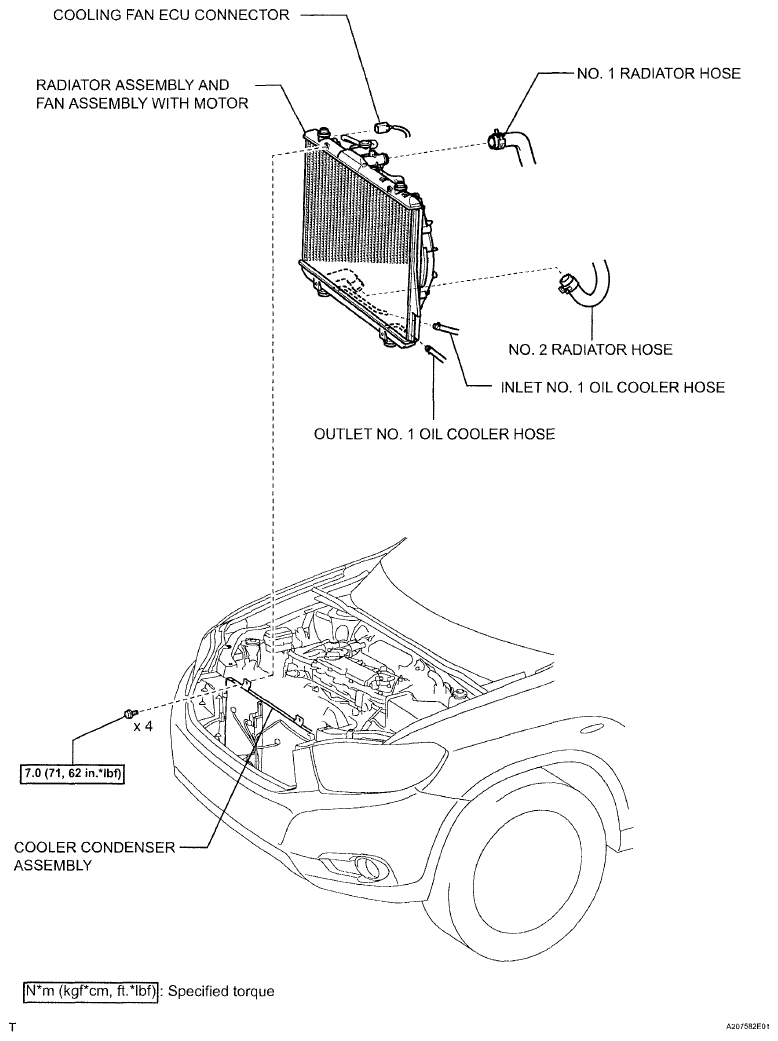

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

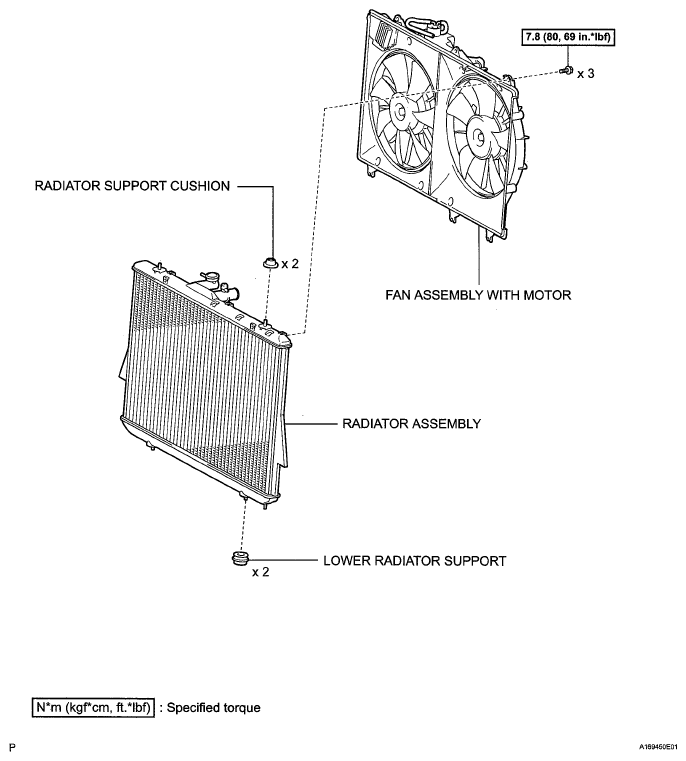

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 4)

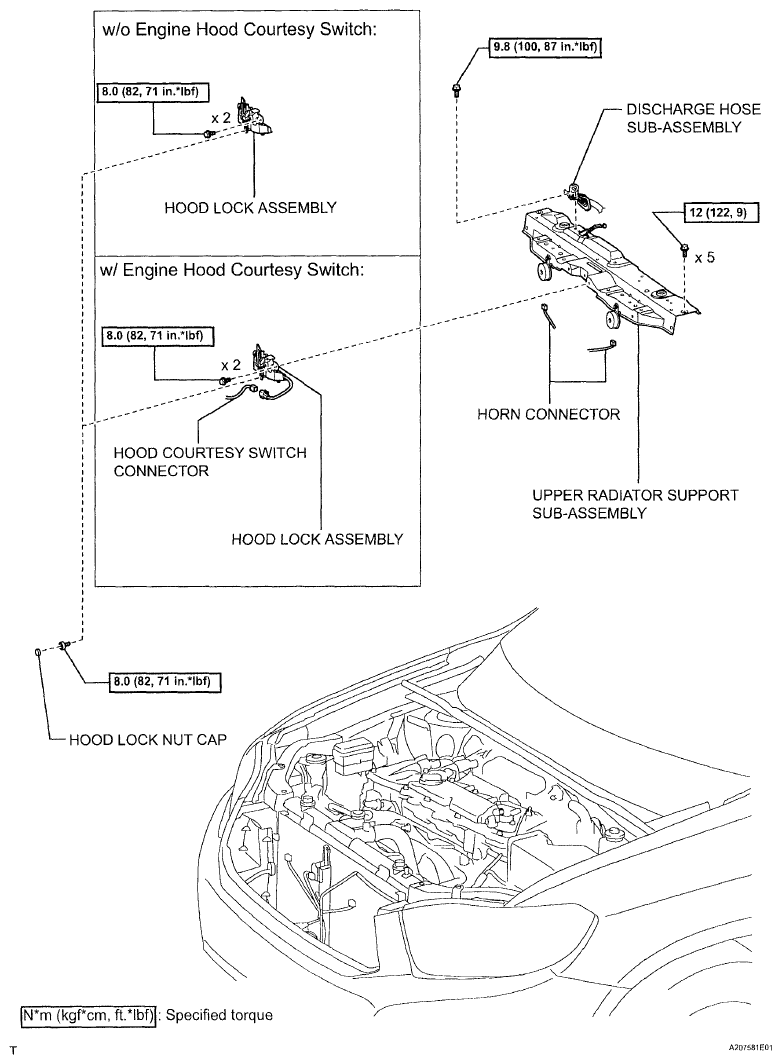

Fig 4: Radiator Replacement Components With Torque Specifications (4 Of 4)
