Section 6 (Charging System (1AR-FE)): Generator: Removal

WARNING: This page is about a different variant/trim than selected.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE V-RIBBED BELT
1. Remove the belt (See ON-VEHICLE INSPECTION ).
REMOVE GENERATOR ASSEMBLY
1. Disconnect the generator connector.
2. Remove the terminal cap.
3. Remove the nut and disconnect the generator wire.
4. Remove the bolt and wire harness clamp bracket.

  Fig 1: Locating Wire Harness Clamp Bracket Bolt And Generator Wire Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and generator.

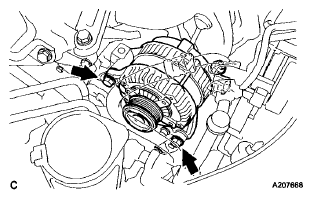

Fig 2: Locating Generator Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
