Engine Unit: Components

WARNING: This page is about a different variant/trim than selected.

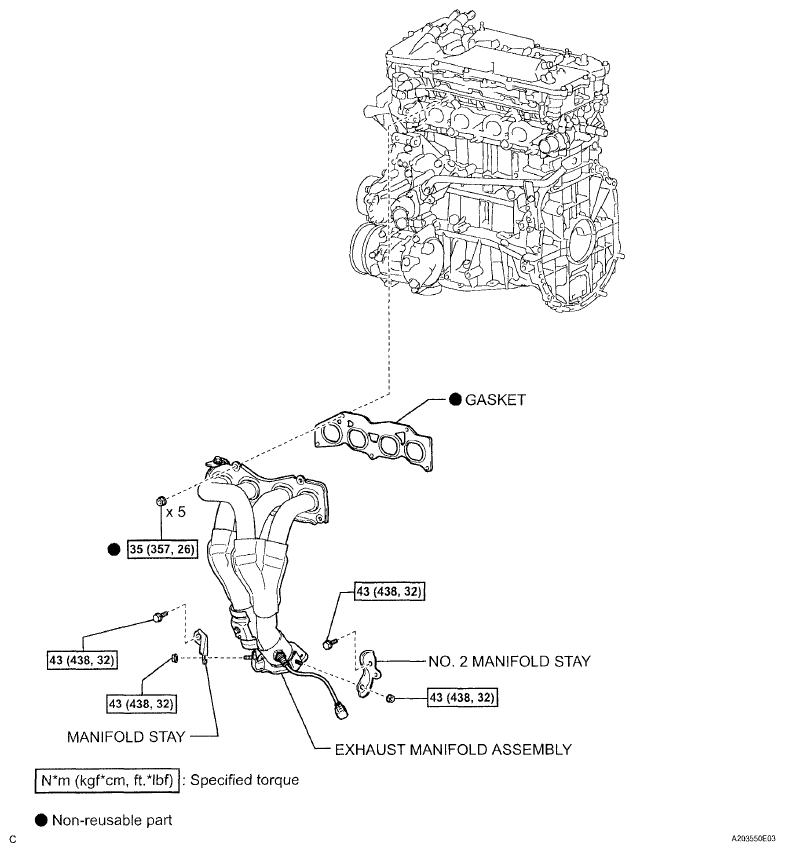

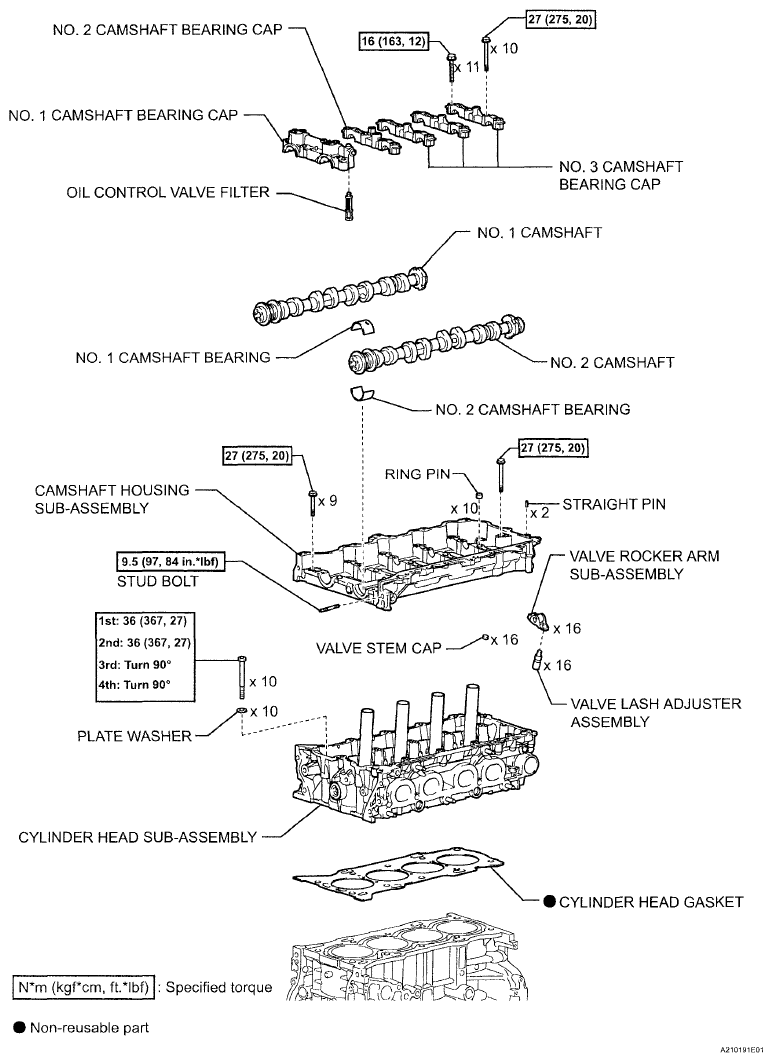

Fig 1: Engine Unit Exploded View With Torque Specification (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

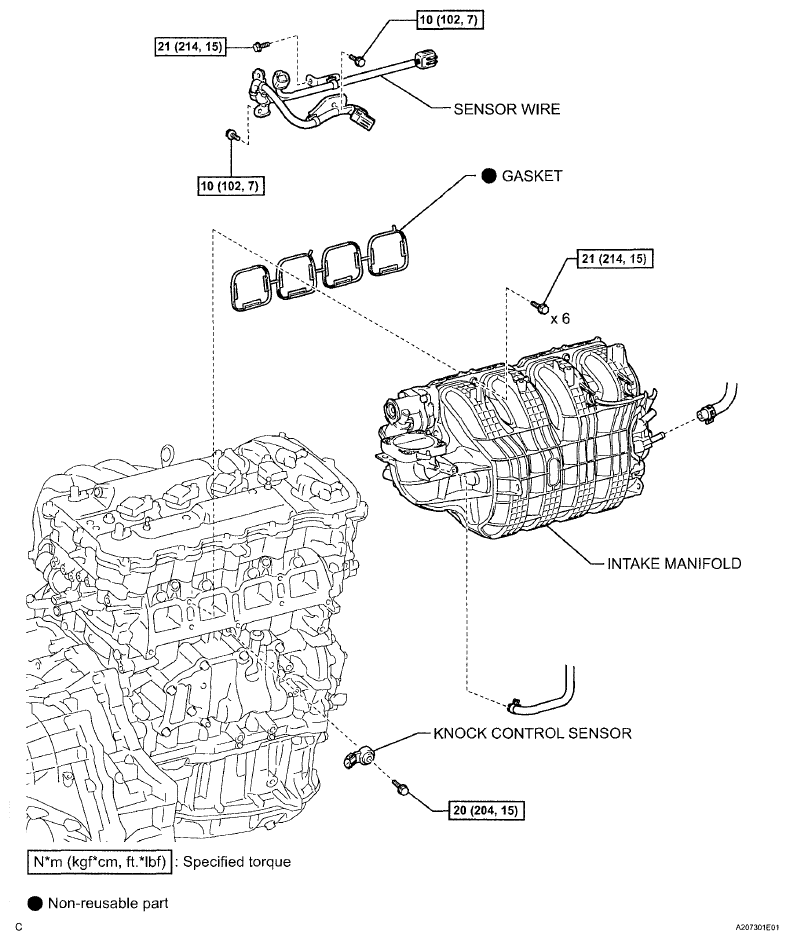

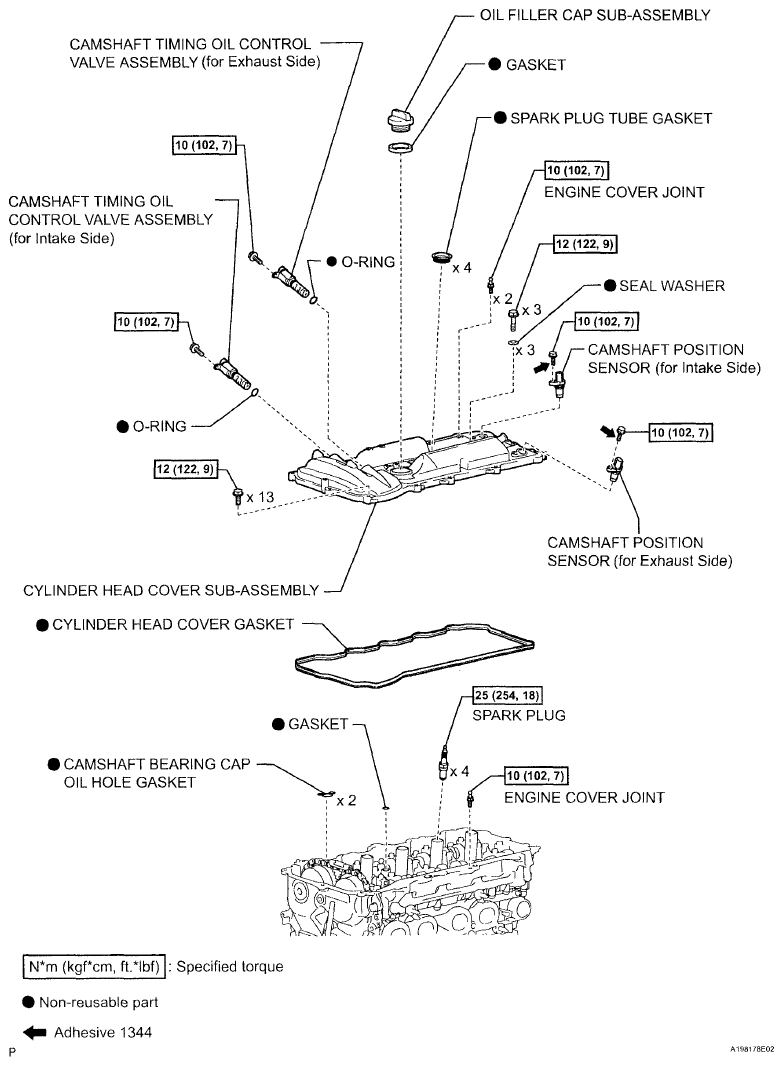

Fig 2: Engine Unit Exploded View With Torque Specification (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

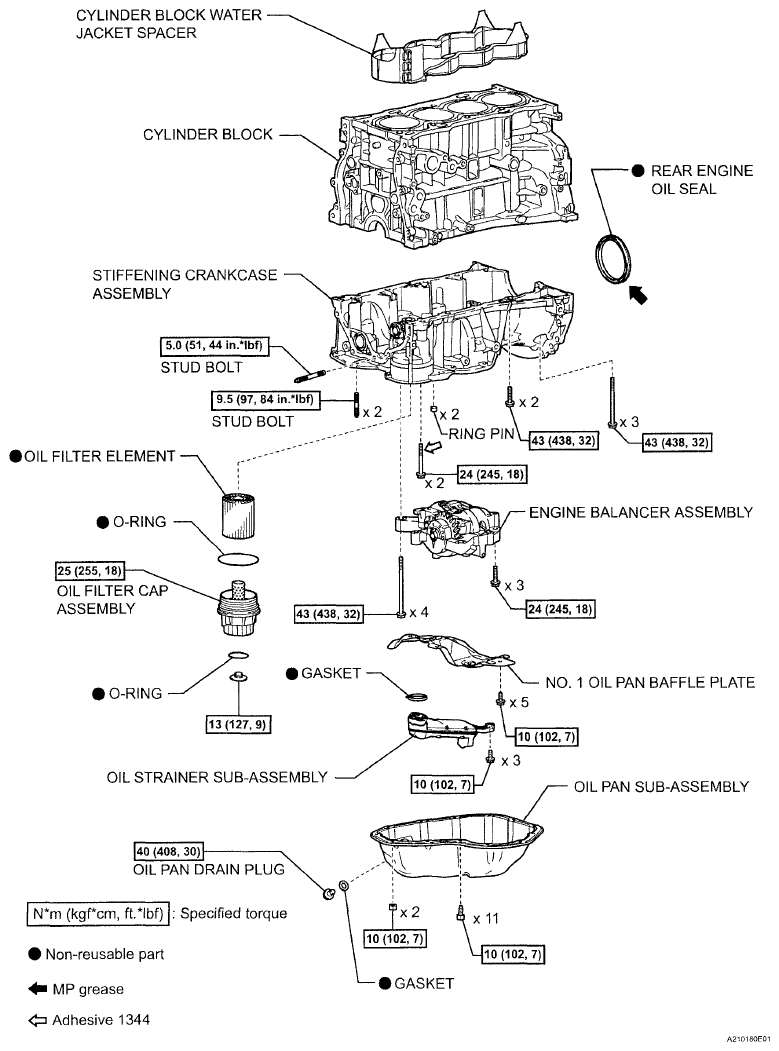

Fig 3: Engine Unit Exploded View With Torque Specification (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

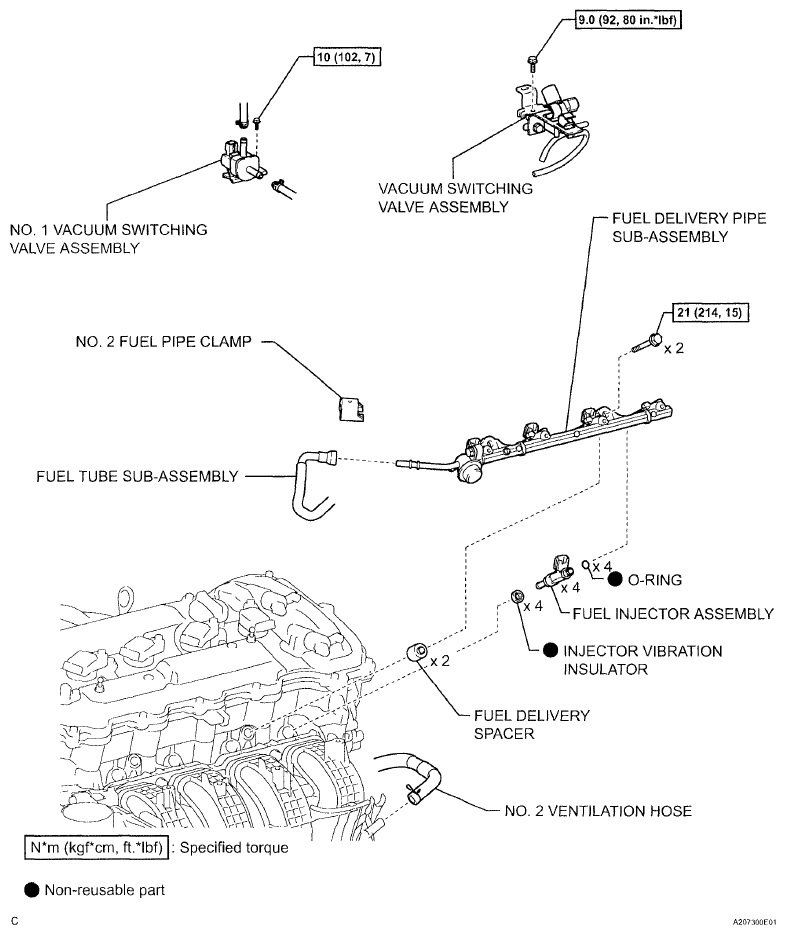

Fig 4: Engine Unit Exploded View With Torque Specification (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

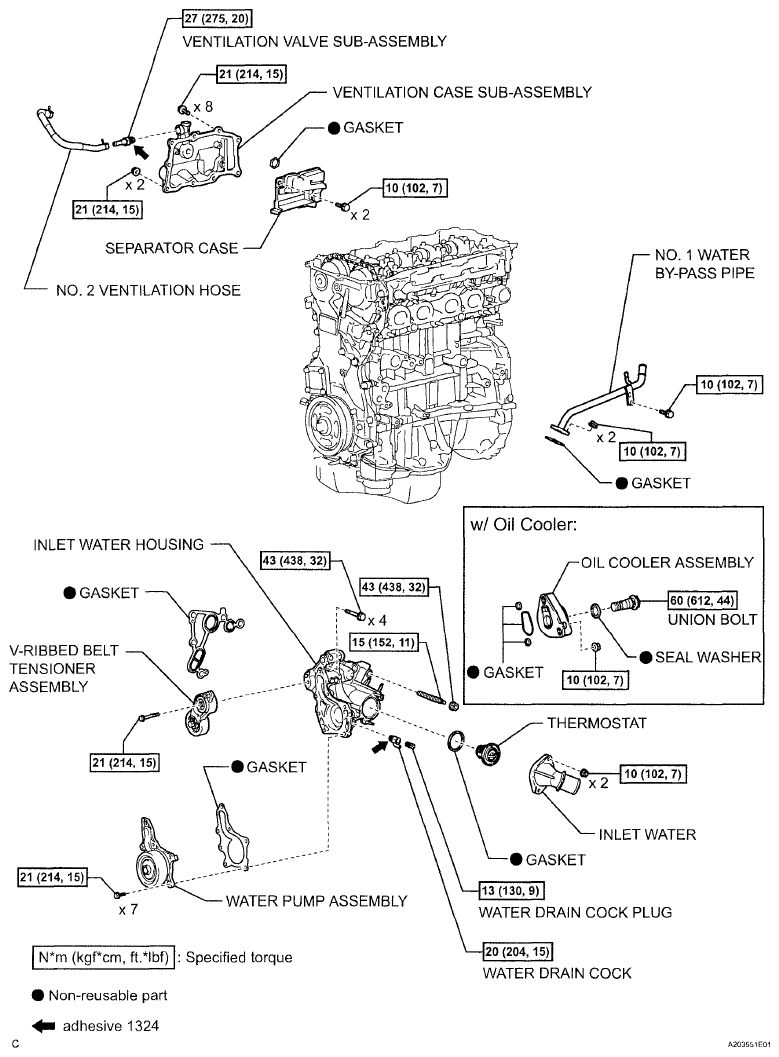

Fig 5: Engine Unit Exploded View With Torque Specification (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

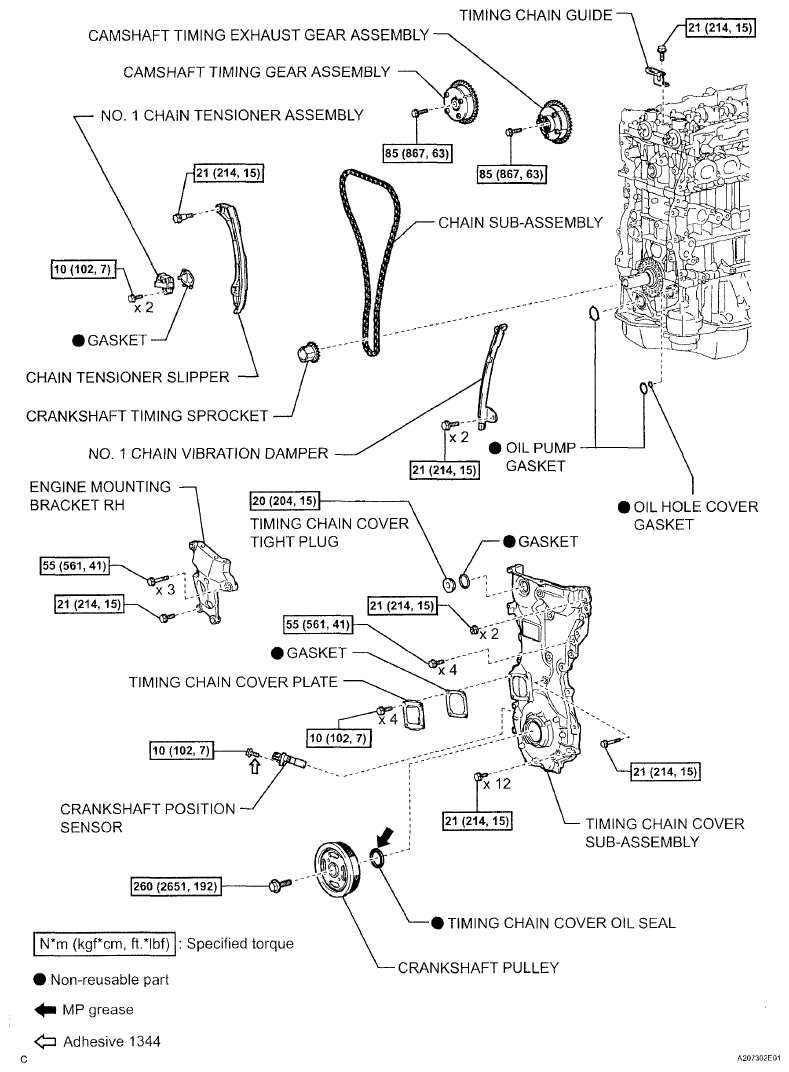

Fig 6: Engine Unit Exploded View With Torque Specification (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

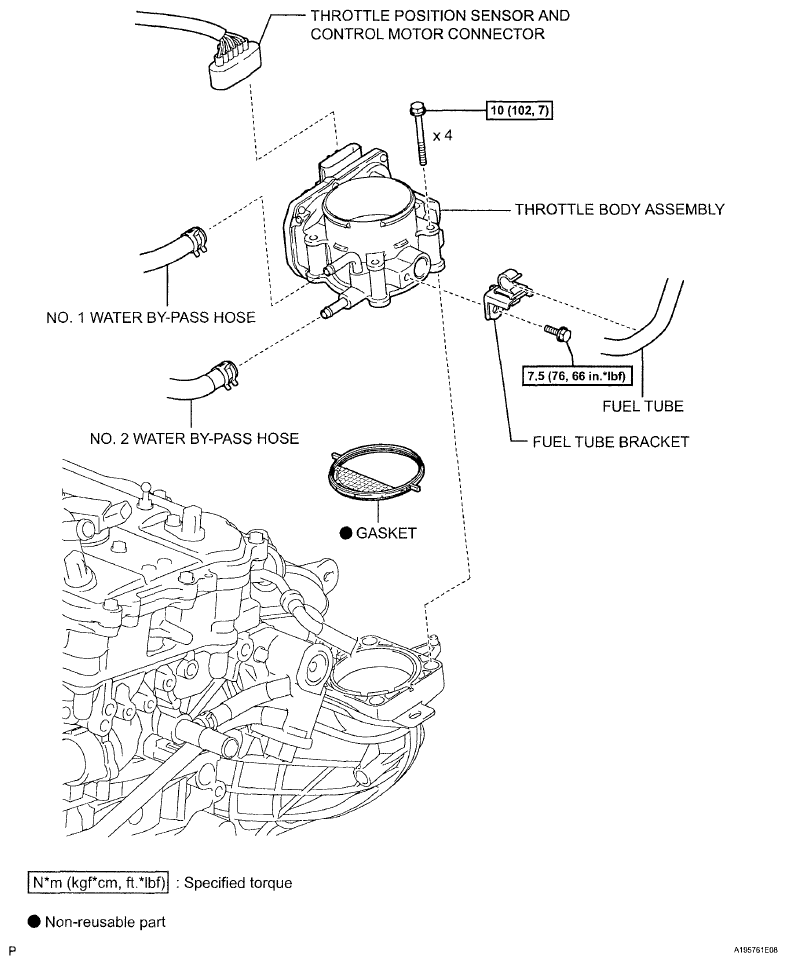

Fig 7: Engine Unit Exploded View With Torque Specification (7 Of 10)

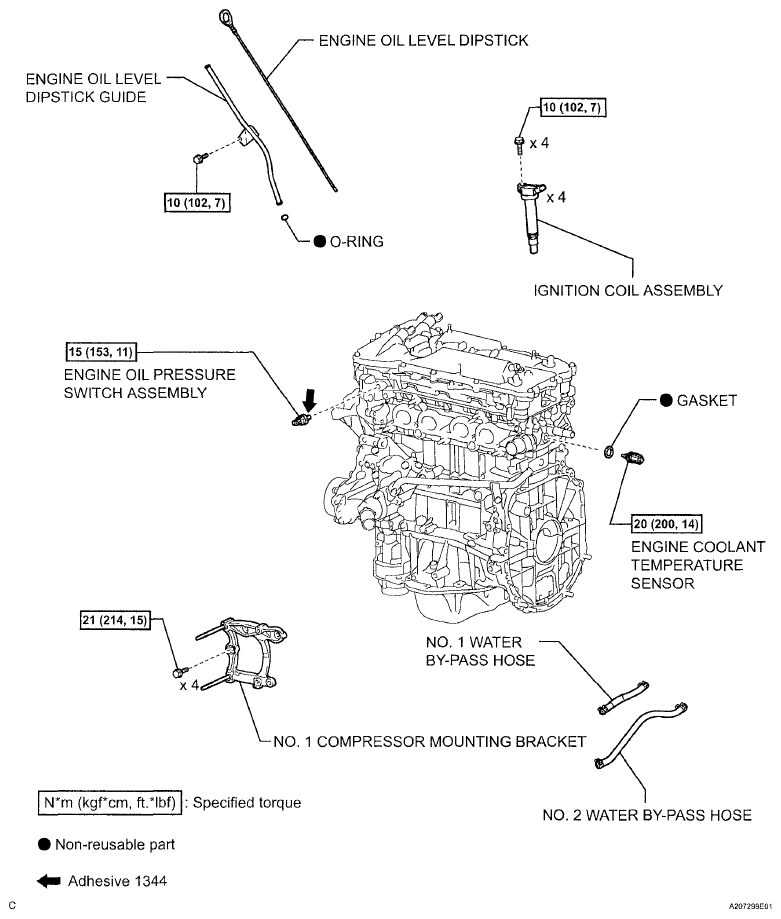

Fig 8: Engine Unit Exploded View With Torque Specification (8 Of 10)

Fig 9: Engine Unit Exploded View With Torque Specification (9 Of 10)

Fig 10: Engine Unit Exploded View With Torque Specification (10 Of 10)
